Capability to detect a GW190521 like source out to specific horizon distances [4.5 yr]
FoM
Science investigation and Observational requirement: SI4.2 OR4.2 from Science requirement document.
Compute average distance for tc in range [7-35] years (SNR=8). Report maximum average horizon distance.
- OK 618.0 [400 600 800] : Maximum average distance of BH-BH with masses [84.8, 65.9] \(M_\odot\) (z = 0.128).
Capability to detect a GW190521 like source out to specific horizon distances. FoM is OK if horizon distance above 600 Mpc (z = 0.124)
Summary

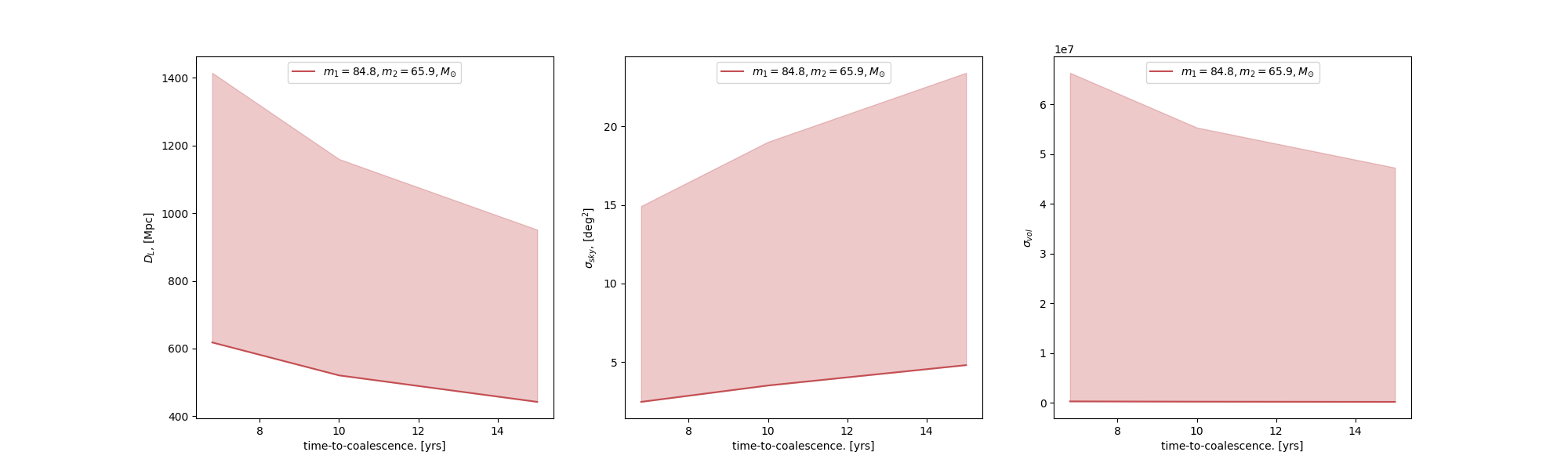

DL tc
We have assumed 4.5 years of observation with 0.82 duty cycle and SNR threshold: 7.999999999999999
We have conducted monte-carlo with 300 trials.
-
for a BH-BH [84.8, 65.9] \(M_\odot\) system horizon distance is 1414.7 [Mpc] (z = 0.269)
-
for a BH-BH [84.8, 65.9] \(M_\odot\) system maximum mean distance = 618.0 [Mpc] (z = 0.128)
Detailed results

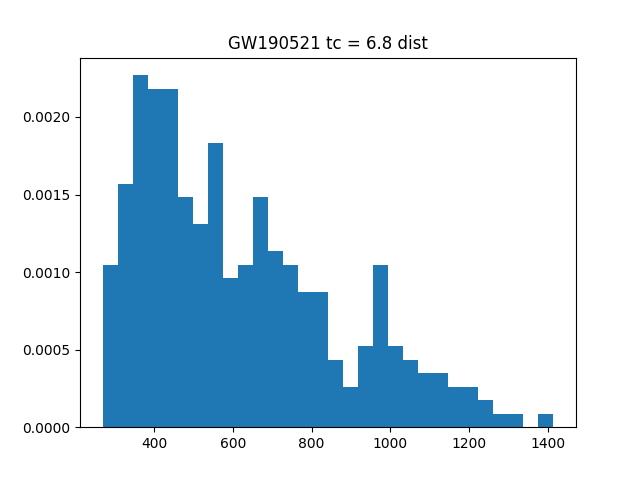

Histogram GW190521 6.8 dist

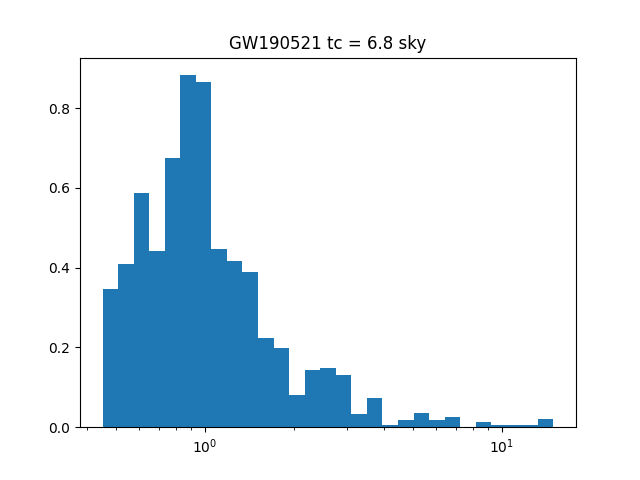

Histogram GW190521 6.8 sky

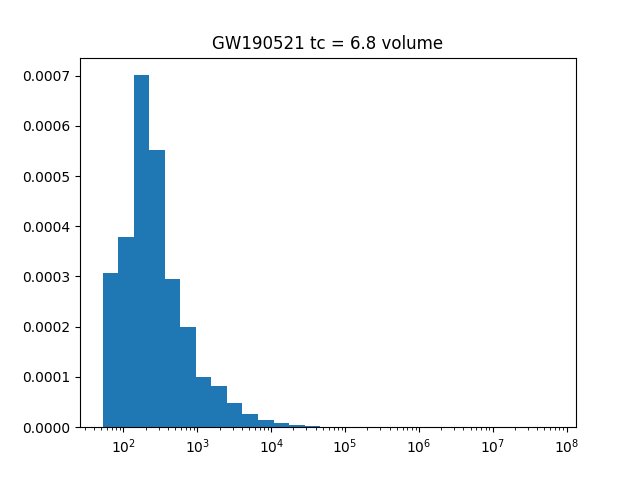

Histogram GW190521 6.8 volume

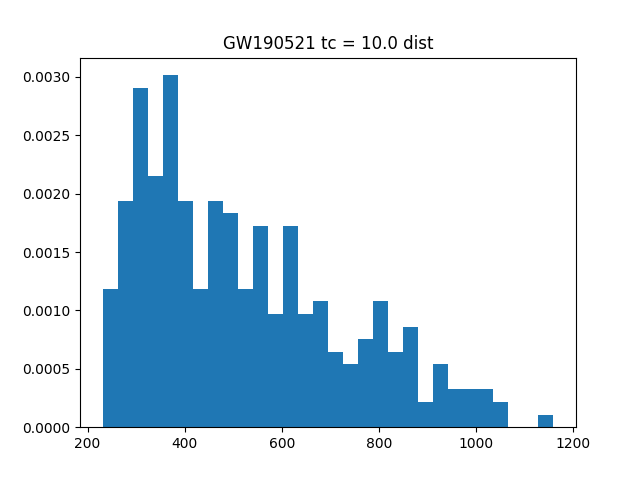

Histogram GW190521 10.0 dist

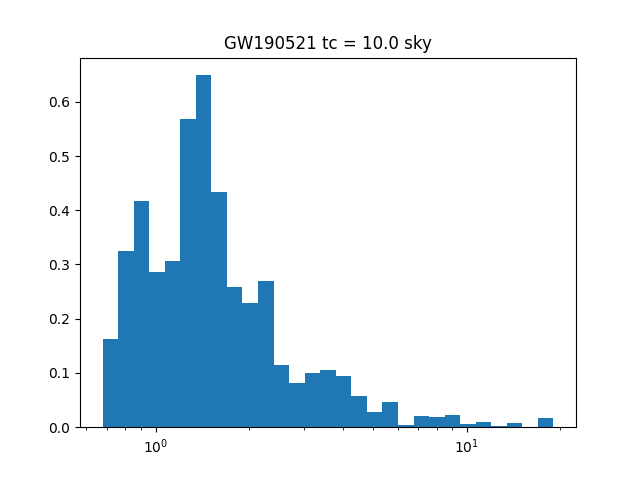

Histogram GW190521 10.0 sky

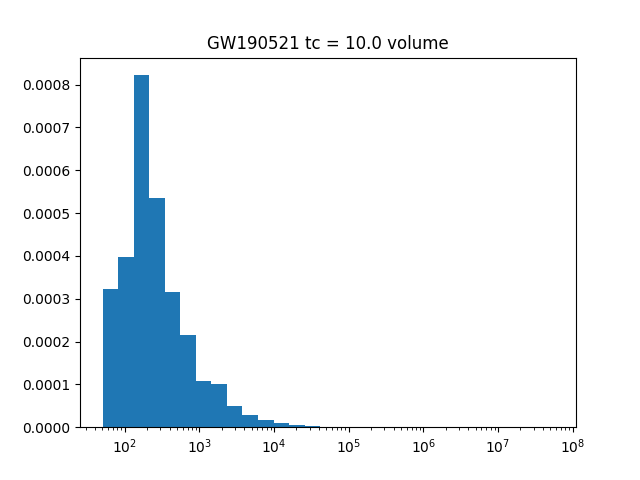

Histogram GW190521 10.0 volume

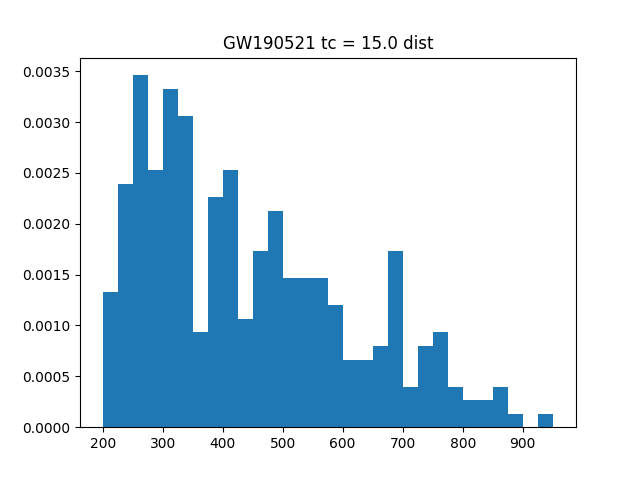

Histogram GW190521 15.0 dist

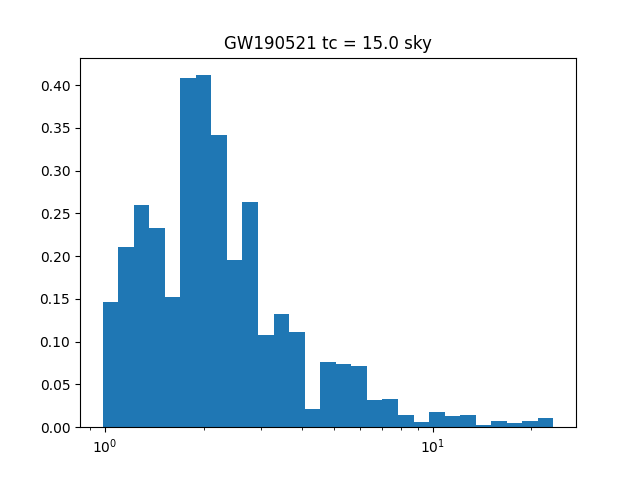

Histogram GW190521 15.0 sky
Histogram GW190521 15.0 volume
waveform_params
'''
- minf : 2e-05
- maxf : 1
- fend : None
- tmin : None
- tmax : 4.5
- phiref : 0.0
- fref_for_phiref : None
- toffset : 0.0
- TDI : TDI2AET
- acc : 0.0001
- order_fresnel_stencil : 0
- approximant : IMRPhenomD
- responseapprox : full
- frozenLISA : False
- TDIrescaled : False
- LISAconst : {'OrbitOmega': 1.9909865927683783e-07, 'OrbitPhi0': 0.0, 'Orbitt0': 0.0, 'OrbitR': 149597870700.0, 'OrbitL': 2500000000.0}
- LISAnoise : [[2.00000000e-05 7.71748532e-41 7.71748532e-41 8.45230844e-54] [2.10000000e-05 5.48584269e-41 5.48584269e-41 7.52449171e-54] [2.20000000e-05 3.96262828e-41 3.96262828e-41 6.82098233e-54] ... [9.99998000e-01 2.73617388e-36 2.73617388e-36 5.73895037e-36] [9.99999000e-01 2.73619429e-36 2.73619429e-36 5.73933494e-36] [1.00000000e+00 2.73621460e-36 2.73621460e-36 5.73971931e-36]] '''
Input parameters
- log : log/SO4_horizon.site.GW190521.log
- config : config.yml
- subconfig :
- duration : 4.5 yr
- duty_cycle : 0.82
- armlength : 2500000000.0 m
- noise : SciRDv1_redbook/noise_background_4.5_yr.npy
- show : False
- fast : 0
- tdi2 : 1
- freqs : [2e-05, 1]
- force_duration : 4.5_yr
- report : SciRDv1_redbook/report_SO4_horizon_sbbh.GW190521.md
- random_seed : 1137
- fom_config : SO4/horizon/GW190521.yml
- fom_title : Capability to detect a GW190521 like source out to specific horizon distances
- fom_range : [400, 600, 800]
- h5file : SO4/data/GW150914_GWTC-1.hdf5
- DL0 : 2000
- tcs : [6.8, 10.0, 15.0]
- snr_thresh : 8
- bracket : [10, 5000]
- fom_or : SI4.2 OR4.2
- fom_objective : Average horizon distance to SOBBH
- nproc : 1
- fom_obj : Compute average distance for tc in range [7-35] years (SNR=8). Report maximum average horizon distance.
