Capability to detect a GW150914 like source out to specific horizon distances [4.5 yr]
FoM
Science investigation and Observational requirement: SI4.1 SI4.2 OR4.2 from Science requirement document.
Compute average distance for tc in range [7-35] years (SNR=8). Report maximum average horizon distance.
- WARNING 193.31 [100 200 300] : Maximum average distance of BH-BH with masses [38.6, 33.3] \(M_\odot\) (z = 0.042).
Capability to detect a GW150914 like source out to specific horizon distances. FoM is OK if horizon distance above 200 Mpc (z = 0.044)
Summary

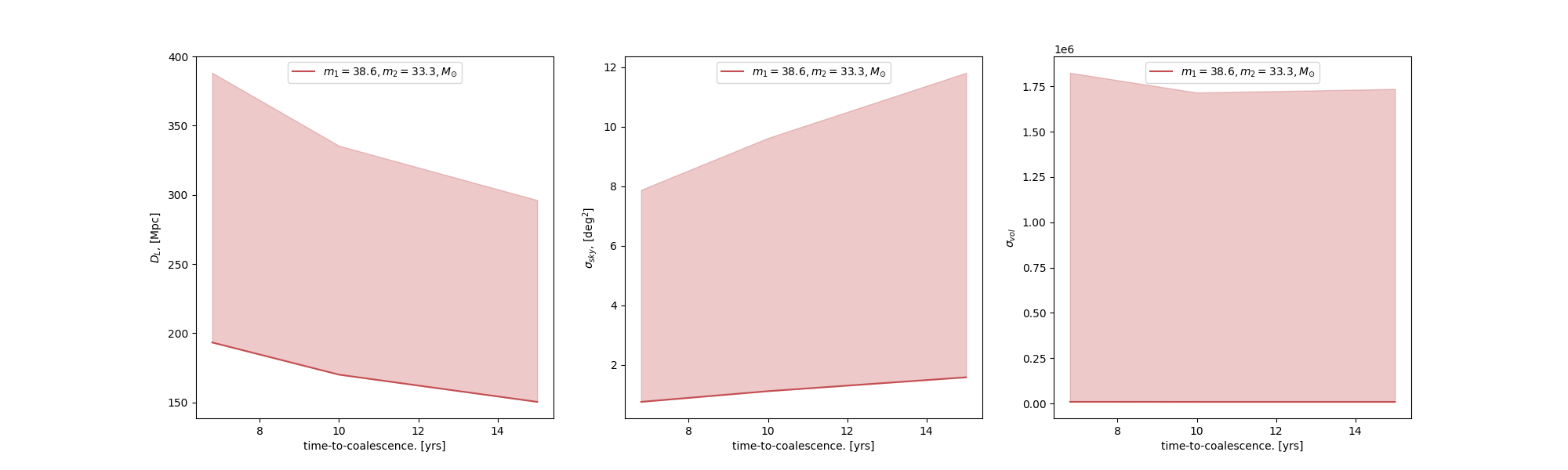

DL tc
We have assumed 4.5 years of observation with 0.82 duty cycle and SNR threshold: 7.999999999999999
We have conducted monte-carlo with 300 trials.
-
for a BH-BH [38.6, 33.3] \(M_\odot\) system horizon distance is 388.2 [Mpc] (z = 0.083)
-
for a BH-BH [38.6, 33.3] \(M_\odot\) system maximum mean distance = 193.3 [Mpc] (z = 0.042)
Detailed results

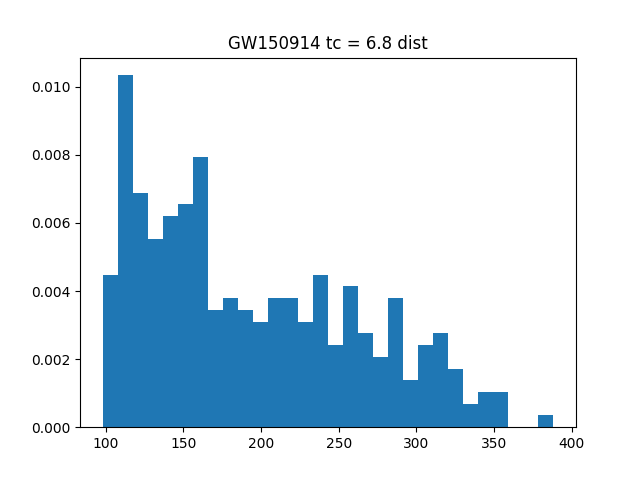

Histogram GW150914 6.8 dist

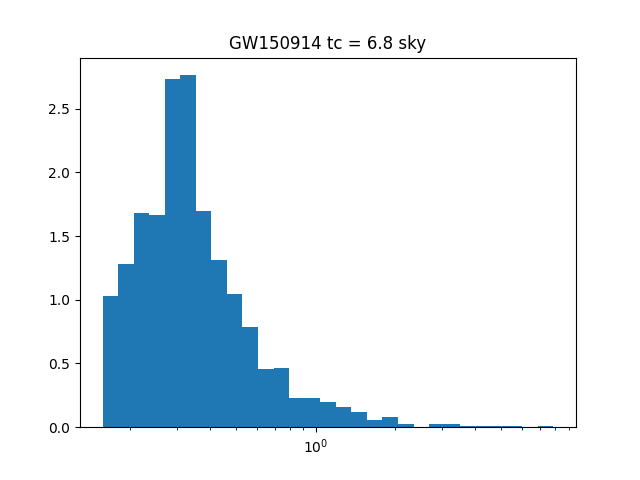

Histogram GW150914 6.8 sky

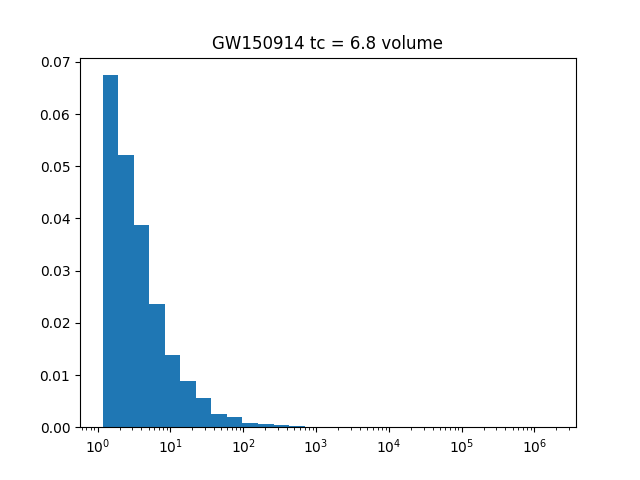

Histogram GW150914 6.8 volume

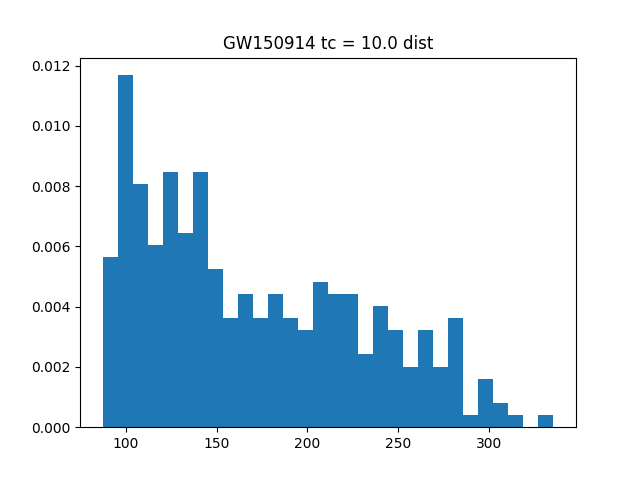

Histogram GW150914 10.0 dist

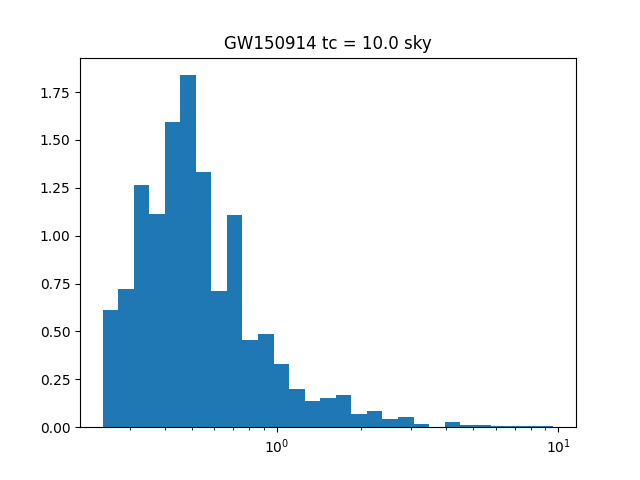

Histogram GW150914 10.0 sky

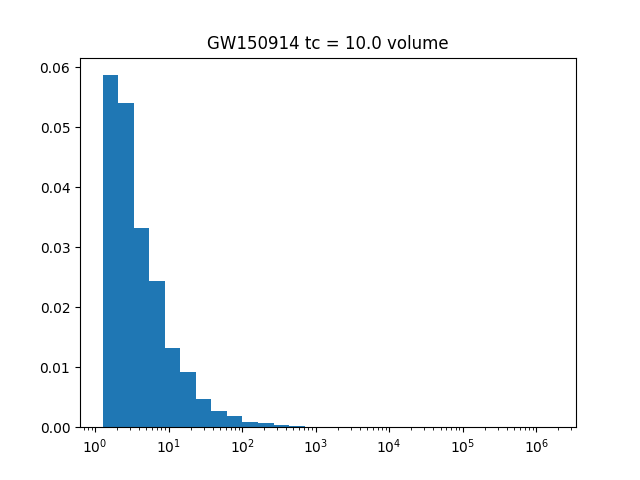

Histogram GW150914 10.0 volume

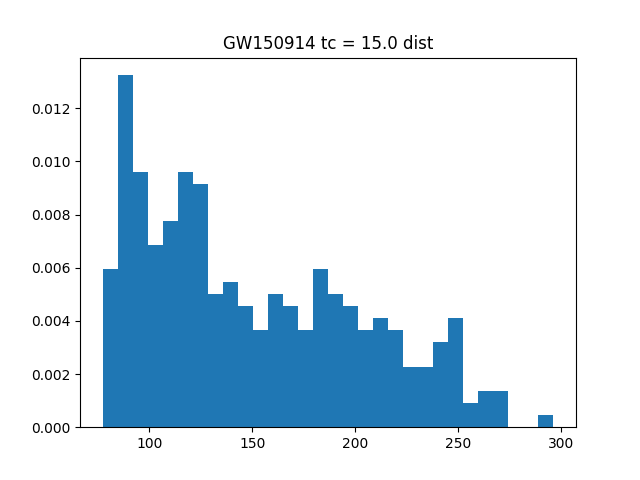

Histogram GW150914 15.0 dist

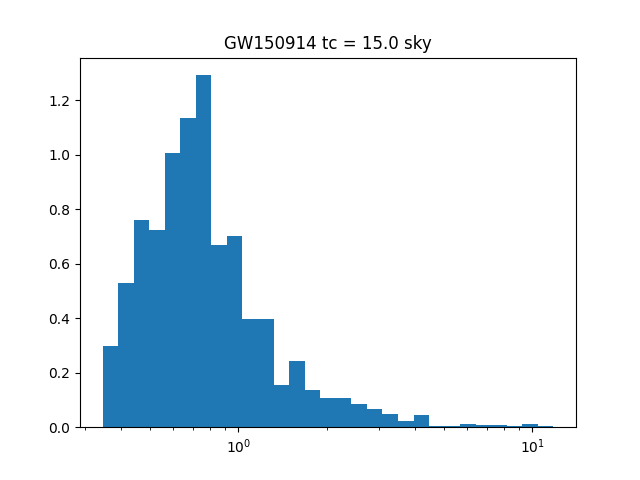

Histogram GW150914 15.0 sky
Histogram GW150914 15.0 volume
waveform_params
'''
- minf : 2e-05
- maxf : 1
- fend : None
- tmin : None
- tmax : 4.5
- phiref : 0.0
- fref_for_phiref : None
- toffset : 0.0
- TDI : TDI2AET
- acc : 0.0001
- order_fresnel_stencil : 0
- approximant : IMRPhenomD
- responseapprox : full
- frozenLISA : False
- TDIrescaled : False
- LISAconst : {'OrbitOmega': 1.9909865927683783e-07, 'OrbitPhi0': 0.0, 'Orbitt0': 0.0, 'OrbitR': 149597870700.0, 'OrbitL': 2500000000.0}
- LISAnoise : [[2.00000000e-05 7.71748532e-41 7.71748532e-41 8.45230844e-54] [2.10000000e-05 5.48584269e-41 5.48584269e-41 7.52449171e-54] [2.20000000e-05 3.96262828e-41 3.96262828e-41 6.82098233e-54] ... [9.99998000e-01 2.73617388e-36 2.73617388e-36 5.73895037e-36] [9.99999000e-01 2.73619429e-36 2.73619429e-36 5.73933494e-36] [1.00000000e+00 2.73621460e-36 2.73621460e-36 5.73971931e-36]] '''
Input parameters
- log : log/SO4_horizon.site.GW150914.log
- config : config.yml
- subconfig :
- duration : 4.5 yr
- duty_cycle : 0.82
- armlength : 2500000000.0 m
- noise : SciRDv1_redbook/noise_background_4.5_yr.npy
- show : False
- fast : 0
- tdi2 : 1
- freqs : [2e-05, 1]
- force_duration : 4.5_yr
- report : SciRDv1_redbook/report_SO4_horizon_sbbh.GW150914.md
- random_seed : 1137
- fom_config : SO4/horizon/GW150914.yml
- fom_title : Capability to detect a GW150914 like source out to specific horizon distances
- fom_range : [100, 200, 300]
- h5file : SO4/data/GW150914_GWTC-1.hdf5
- DL0 : 450
- tcs : [6.8, 10.0, 15.0]
- snr_thresh : 8
- bracket : [1, 1500]
- fom_or : SI4.1 SI4.2 OR4.2
- fom_objective : Average horizon distance to SOBBH
- nproc : 1
- fom_obj : Compute average distance for tc in range [7-35] years (SNR=8). Report maximum average horizon distance.
