Capability to detect a 10-10 \(M_{\odot}\) BH-BH source out to specific horizon distances [4.5 yr]
FoM
Science investigation and Observational requirement: SI4.2 from Science requirement document.
Compute average distance for tc in range [7-35] years (SNR=8). Report maximum average horizon distance.
- OK 30.89 [10 30 50] : Maximum average distance of BH-BH with masses [10.0, 10.0] \(M_\odot\) (z = 0.007).
Capability to detect a 10-10 \(M_{\odot}\) BH-BH source out to specific horizon distances. FoM is OK if horizon distance above 30 Mpc (z = 0.007)
Summary

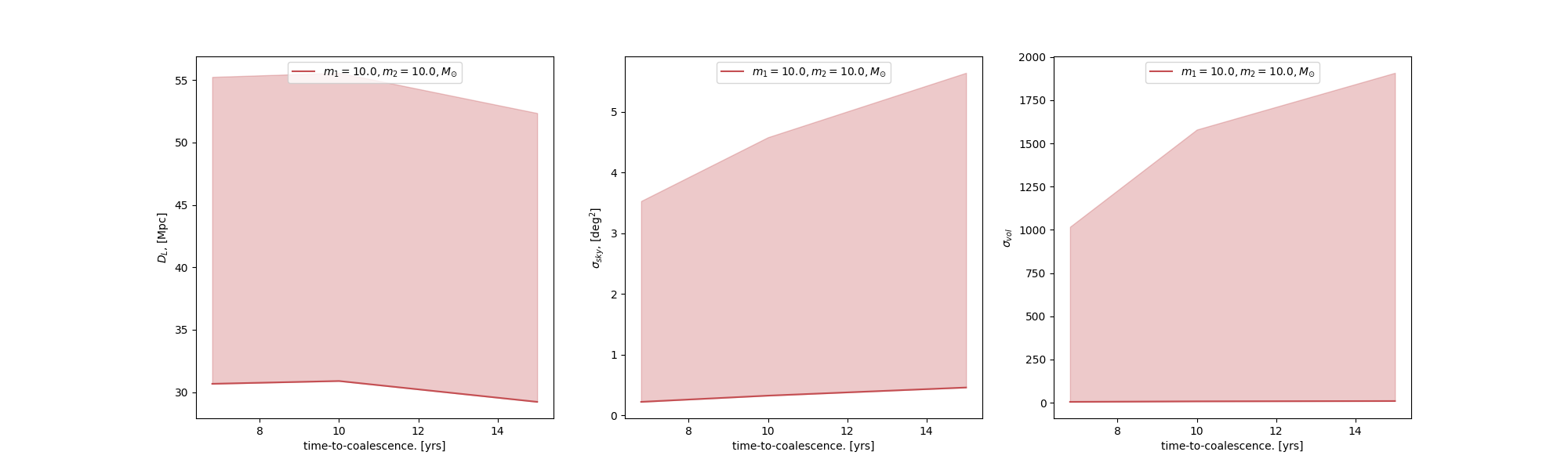

DL tc
We have assumed 4.5 years of observation with 0.82 duty cycle and SNR threshold: 7.999999999999999
We have conducted monte-carlo with 300 trials.
-
for a BH-BH [10.0, 10.0] \(M_\odot\) system horizon distance is 55.6 [Mpc] (z = 0.012)
-
for a BH-BH [10.0, 10.0] \(M_\odot\) system maximum mean distance = 30.9 [Mpc] (z = 0.007)
Detailed results

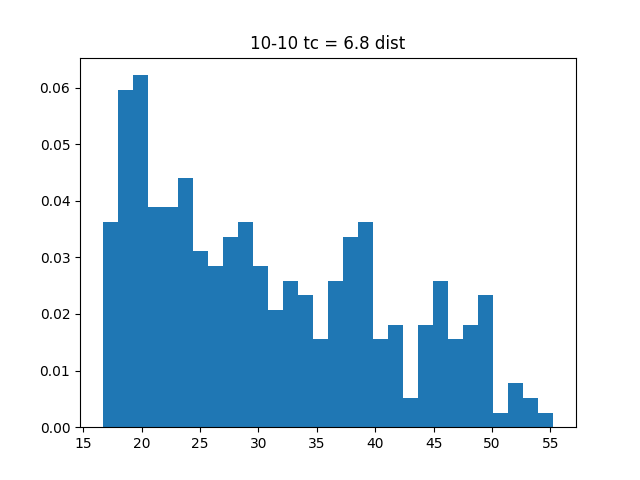

Histogram 10-10 6.8 dist

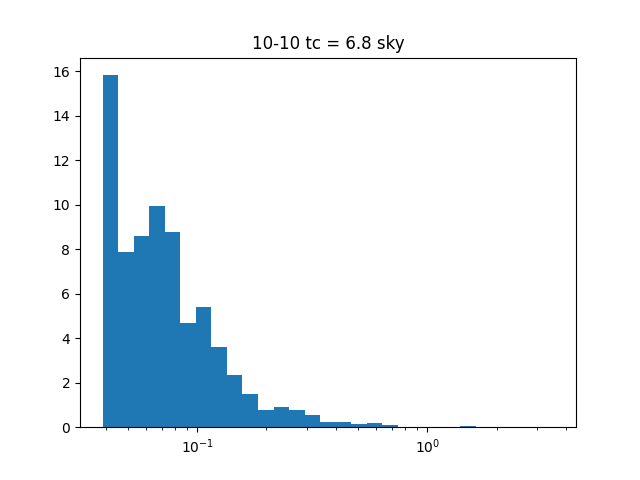

Histogram 10-10 6.8 sky
Histogram 10-10 6.8 volume

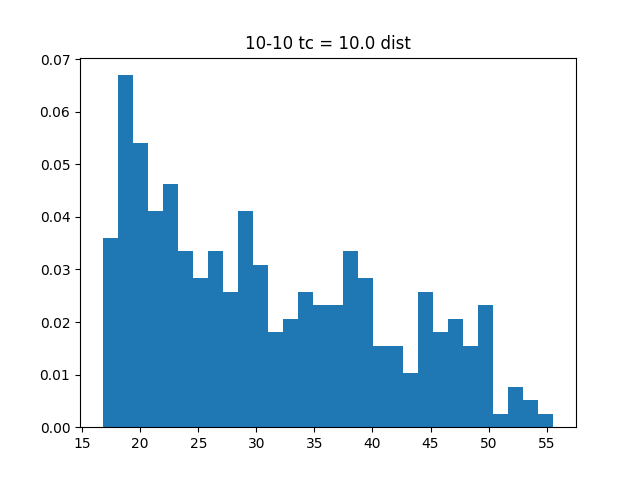

Histogram 10-10 10.0 dist

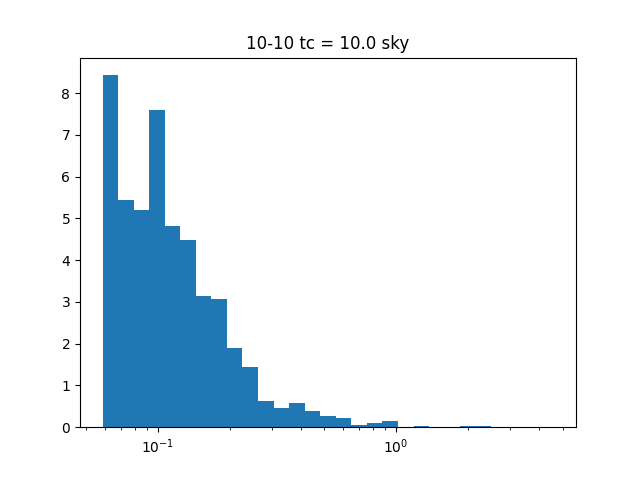

Histogram 10-10 10.0 sky
Histogram 10-10 10.0 volume

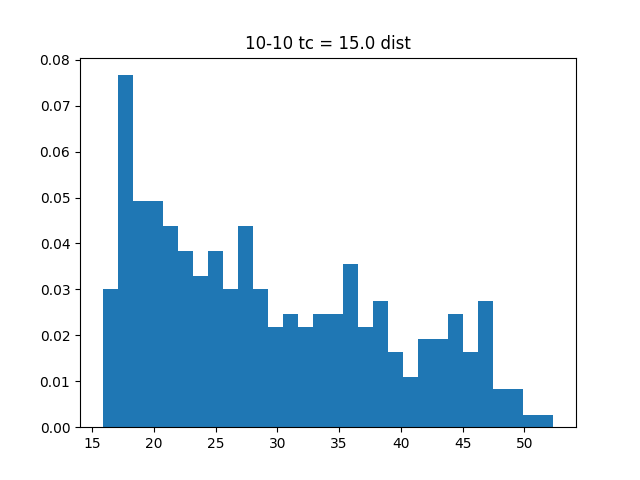

Histogram 10-10 15.0 dist

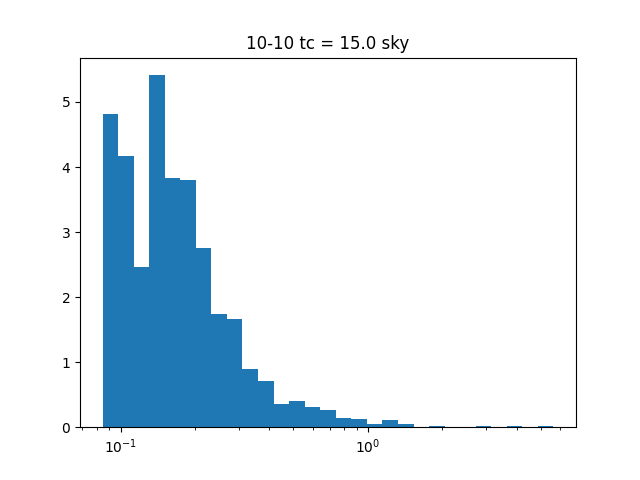

Histogram 10-10 15.0 sky

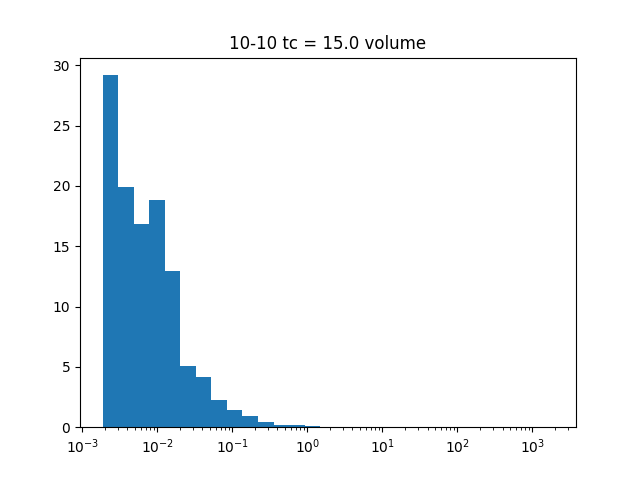

Histogram 10-10 15.0 volume
waveform_params
'''
- minf : 2e-05
- maxf : 1
- fend : None
- tmin : None
- tmax : 4.5
- phiref : 0.0
- fref_for_phiref : None
- toffset : 0.0
- TDI : TDI2AET
- acc : 0.0001
- order_fresnel_stencil : 0
- approximant : IMRPhenomD
- responseapprox : full
- frozenLISA : False
- TDIrescaled : False
- LISAconst : {'OrbitOmega': 1.9909865927683783e-07, 'OrbitPhi0': 0.0, 'Orbitt0': 0.0, 'OrbitR': 149597870700.0, 'OrbitL': 2500000000.0}
- LISAnoise : [[2.00000000e-05 7.71748532e-41 7.71748532e-41 8.45230844e-54] [2.10000000e-05 5.48584269e-41 5.48584269e-41 7.52449171e-54] [2.20000000e-05 3.96262828e-41 3.96262828e-41 6.82098233e-54] ... [9.99998000e-01 2.73617388e-36 2.73617388e-36 5.73895037e-36] [9.99999000e-01 2.73619429e-36 2.73619429e-36 5.73933494e-36] [1.00000000e+00 2.73621460e-36 2.73621460e-36 5.73971931e-36]] '''
Input parameters
- log : log/SO4_horizon.site.10-10.log
- config : config.yml
- subconfig :
- duration : 4.5 yr
- duty_cycle : 0.82
- armlength : 2500000000.0 m
- noise : SciRDv1_redbook/noise_background_4.5_yr.npy
- show : False
- fast : 0
- tdi2 : 1
- freqs : [2e-05, 1]
- force_duration : 4.5_yr
- report : SciRDv1_redbook/report_SO4_horizon_sbbh.10-10.md
- random_seed : 1137
- fom_config : SO4/horizon/10-10.yml
- fom_title : Capability to detect a 10-10 $M_{\odot}$ BH-BH source out to specific horizon distances
- fom_range : [10, 30, 50]
- h5file : SO4/data/GW150914_GWTC-1.hdf5
- DL0 : 700
- tcs : [6.8, 10.0, 15.0]
- snr_thresh : 8
- bracket : [1, 300]
- fom_or : SI4.2
- fom_objective : Average horizon distance to SOBBH
- nproc : 1
- fom_obj : Compute average distance for tc in range [7-35] years (SNR=8). Report maximum average horizon distance.
