Reconstructing the cosmic history (spin measurements) [4.5 yr]

FoM

Science investigation and Observational requirement: SI 3.2.2b from Science requirement document.

Detection of MBHB with source-frame mass in the range \(10^4-10^7\) M\(_\odot\) and formation redshift in the range \(z = 2\) with SNR\(>10\)

- OK 0.02 [0.1 0.03 0.01] : Relative error on the source frame component mass 1.

System of mass 1e7 at z=2.

- OK 0.02 [0.1 0.03 0.01] : Relative error on the source frame component mass 2.

System of mass 1e7 at z=2.

- OK 0.003 [0.1 0.006 0.002] : Absolute error on spin 1.

System of mass 1e7 at z=2.

- OK 0.006 [0.1 0.006 0.002] : Absolute error on spin 2.

System of mass 1e7 at z=2.

Summary

Ms	z	snr	tdet_s	dMc/Mc	dq/q	dDL/DL	dz/z	dM	dm1s/m1s	dm2s/m2s	dm1/m1	dm2/m2	dchieff	dMf/Mf	dchi1	dchi2	diota
500000.000000	2.000000	1132.371300	1059318.101405	0.000041	0.001934	0.010265	0.008472	773.811251	0.005773	0.005950	0.001060	0.000861	0.000350	0.000035	0.001361	0.003369	0.003112
1000000.000000	2.000000	1933.353744	660111.428961	0.000079	0.000928	0.008286	0.006960	738.132765	0.004741	0.004783	0.000512	0.000435	0.000316	0.000021	0.000880	0.002007	0.001795
5000000.000000	2.000000	1491.211741	154906.822368	0.000466	0.001114	0.016808	0.013968	6046.590273	0.009508	0.009624	0.000492	0.000865	0.000694	0.000044	0.001566	0.003592	0.001429
10000000.000000	2.000000	1029.089109	69310.407450	0.001093	0.002279	0.028932	0.023541	22254.449180	0.016376	0.016485	0.000809	0.002069	0.001333	0.000099	0.002624	0.005719	0.002630

MBHB with waveform IMRPhenomHM of

• mass = [500000.0, 1000000.0, 5000000.0, 10000000.0] solar mass
• mass ratio in [1, 10] (log uniform),
• redshift = [2]
• t0 in [0.10 - 0.95] (uniform)
• chi in [0.00 - 1.00] (uniform))

Conducting monte-carlo over 1000 trials, randomizing spins, sky position and orientation

Assuming SNR threshold for detection: 10.0

For derived parameters (dz/z, dMf/Mf), random samples are drawn from the inverse Fisher, derived quantities are computed and we extract their standard deviation and mean.

For the following waveform parameters (dMc/Mc, dDL/DL, dq/q), we use a log10 parameterization.

We report observer frame errors.

Detailed results

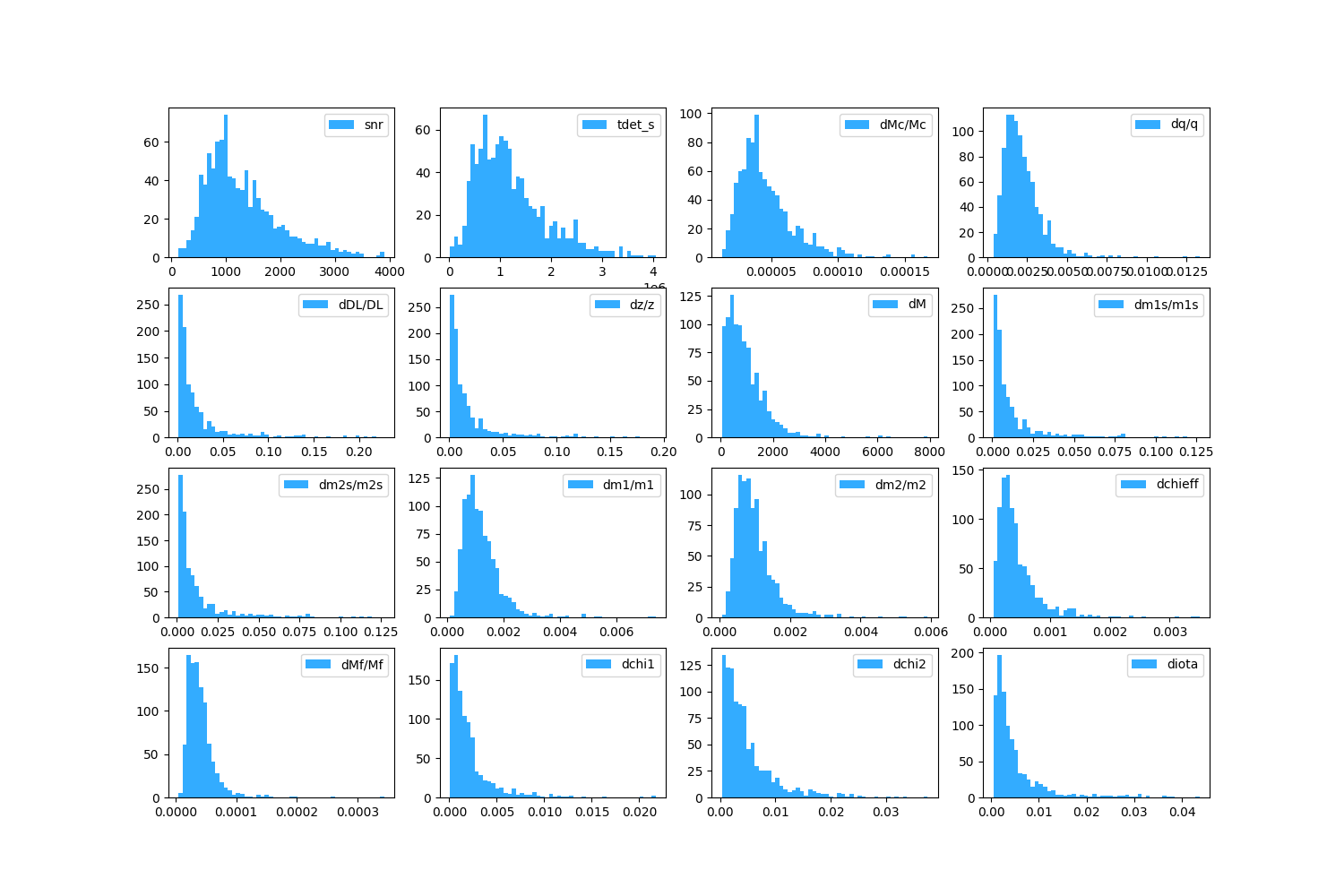

Ms=500000.0, z=2

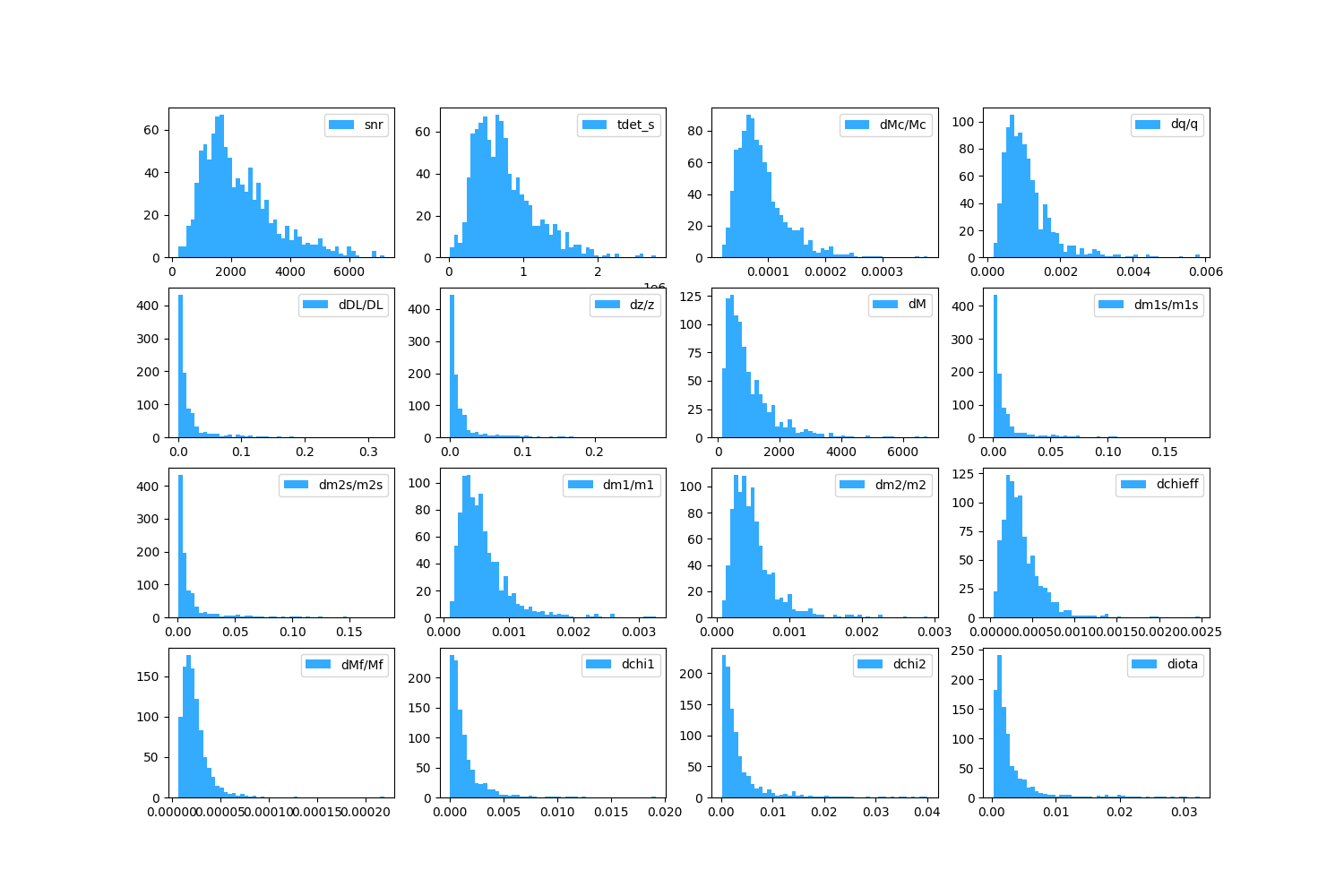

Ms=1000000.0, z=2

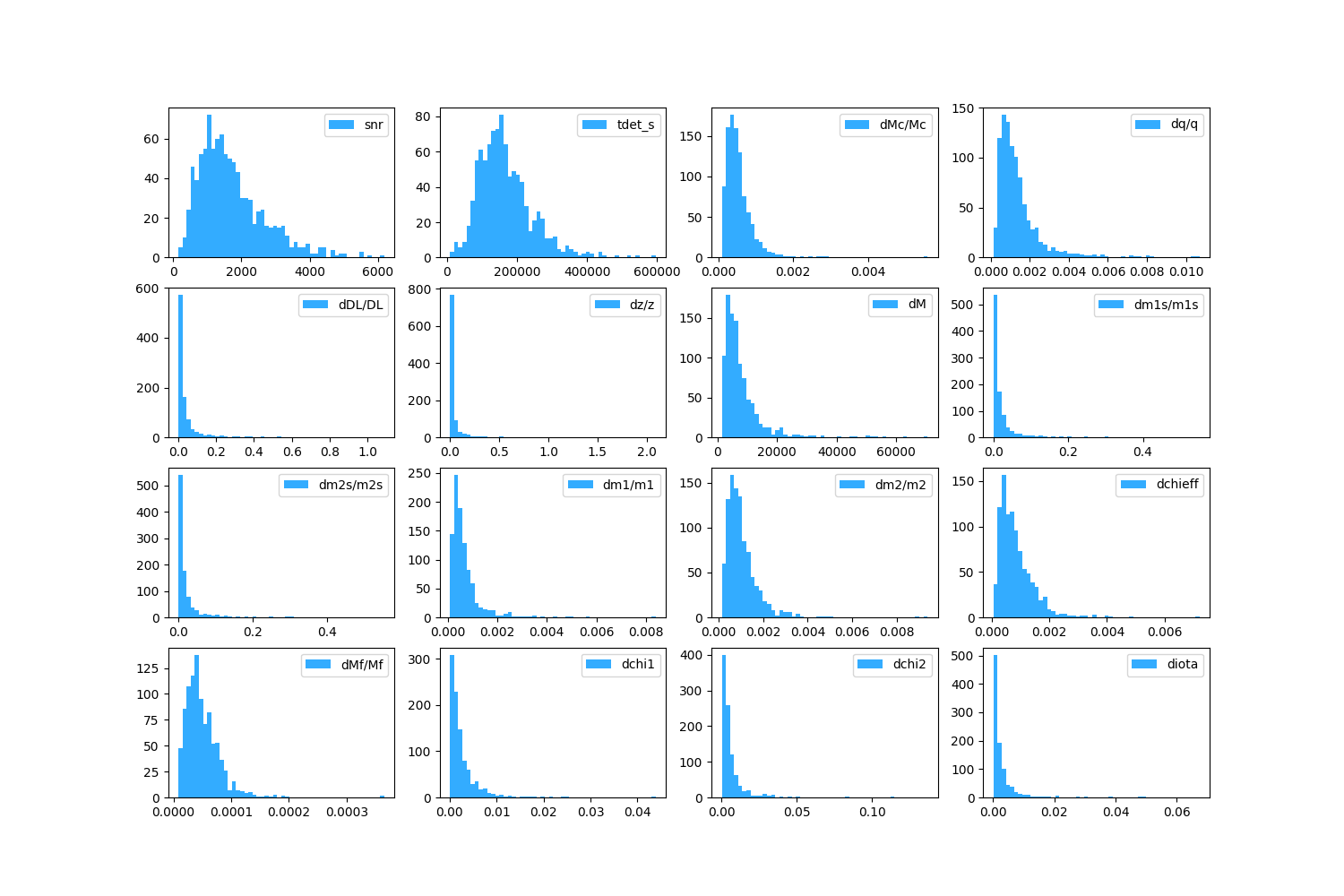

Ms=5000000.0, z=2

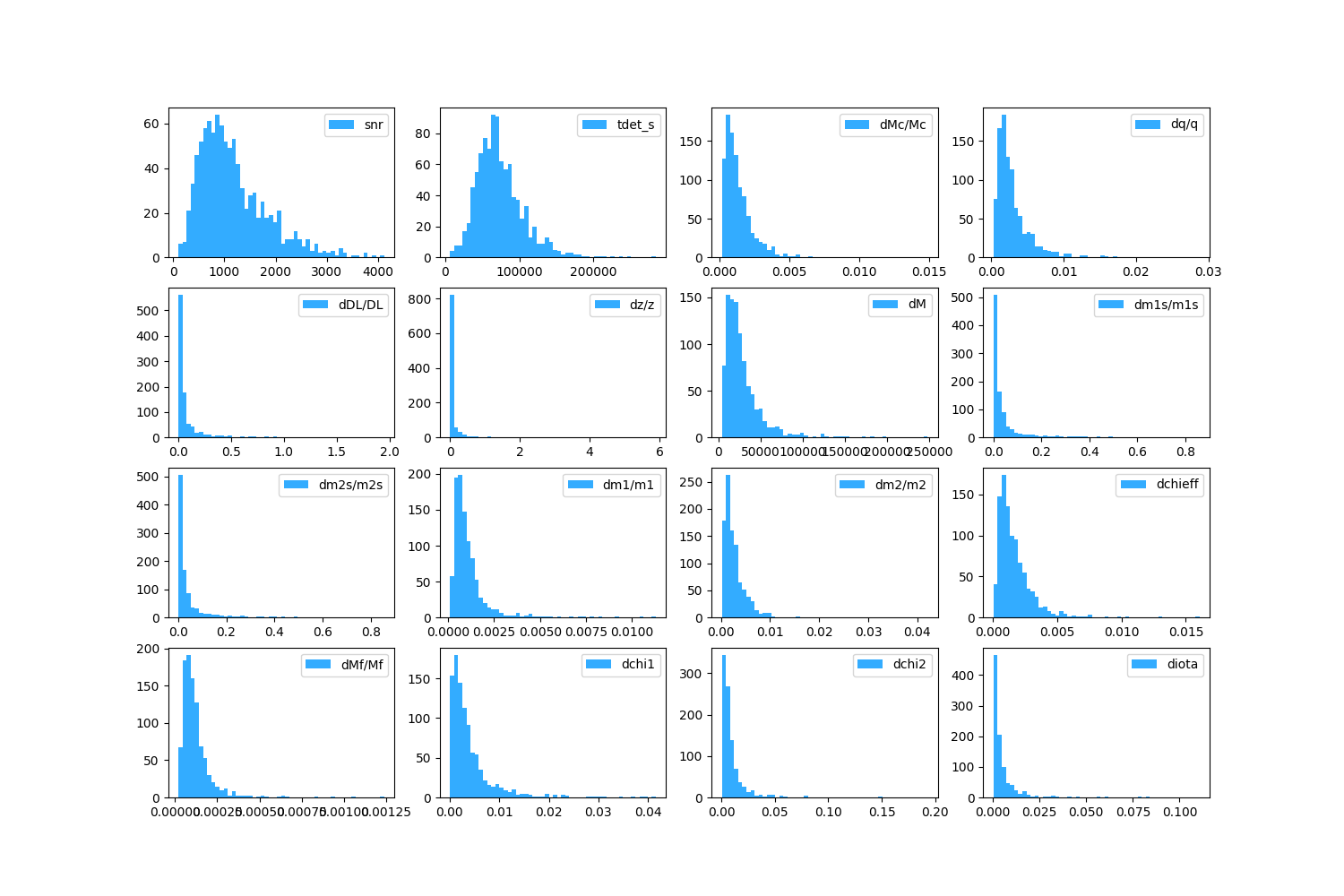

Ms=10000000.0, z=2

waveform_params

'''

• minf : 2e-05
• maxf : 1
• fend : None
• tmin : 0.0
• tmax : None
• phiref : 0.0
• fref_for_phiref : 0.0
• toffset : 0.0
• TDI : TDI2AET
• acc : 0.0001
• order_fresnel_stencil : 0
• approximant : IMRPhenomHM
• responseapprox : full
• frozenLISA : False
• TDIrescaled : False
• LISAconst : {'OrbitOmega': 1.9909865927683783e-07, 'OrbitPhi0': 0.0, 'Orbitt0': 0.0, 'OrbitR': 149597870700.0, 'OrbitL': 2500000000.0}
• LISAnoise : [[2.00000000e-05 7.71748532e-41 7.71748532e-41 8.45230844e-54] [2.10000000e-05 5.48584269e-41 5.48584269e-41 7.52449171e-54] [2.20000000e-05 3.96262828e-41 3.96262828e-41 6.82098233e-54] ... [9.99998000e-01 2.73617388e-36 2.73617388e-36 5.73895037e-36] [9.99999000e-01 2.73619429e-36 2.73619429e-36 5.73933494e-36] [1.00000000e+00 2.73621460e-36 2.73621460e-36 5.73971931e-36]]
• timetomerger_max : 4.5
• modes : [(2, 2), (2, 1), (3, 3), (4, 4)] '''

Input parameters

- log : log/SO2_parameter_estimation.growth2.log
- config : config.yml
- subconfig :
- duration : 4.5 yr
- duty_cycle : 0.82
- armlength : 2500000000.0 m
- noise : SciRDv1
- show : False
- fast : 0
- tdi2 : 1
- freqs : [2e-05, 1]
- force_duration : 4.5_yr
- report : SciRDv1_redbook/report_SO2a_parameter_estimation.growth2.md
- snr_thresh : 10
- fom_range : []
- fom_parameter : []
- fom_title : Reconstructing the cosmic history (spin measurements)
- fom_or : ['SI 3.2.2b']
- fom_objective : Detectability/PE for MBHB
- fom_config : SO2/parameter_estimation.growth2.yml
- output : SciRDv1_redbook/data_SO2a_parameter_estimation.growth2.pkl
- mass_range : [500000.0, 1000000.0, 5000000.0, 10000000.0]
- z_range : [2]
- spin_range : [0, 1]
- mass_ratio_range : [1, 10]
- fom_obj : Detection of MBHB with source-frame mass in the range $10^4-10^7$ M$_\odot$ and formation redshift in the range $z = 2$ with SNR$>10$
- foms : [{'system': 3, 'value': 'dm1s/m1s', 'good': 0.03, 'bad': 0.1, 'extra': 0.01, 'title': 'Relative error on the source frame component mass 1.', 'descr': 'System of mass 1e7 at z=2. '}, {'system': 3, 'value': 'dm2s/m2s', 'good': 0.03, 'bad': 0.1, 'extra': 0.01, 'title': 'Relative error on the source frame component mass 2.', 'descr': 'System of mass 1e7 at z=2. '}, {'system': 3, 'value': 'dchi1', 'good': 0.006, 'bad': 0.1, 'extra': 0.002, 'title': 'Absolute error on spin 1.', 'descr': 'System of mass 1e7 at z=2. ', 'round': 3}, {'system': 3, 'value': 'dchi2', 'good': 0.006, 'bad': 0.1, 'extra': 0.002, 'title': 'Absolute error on spin 2.', 'descr': 'System of mass 1e7 at z=2. ', 'round': 3}]
