report SO1a detectability vgb 4.5 yr.md

Detectability of verification binaries and measurement of the their frequency evolution [4.5 yr]

FoM

Science investigation and Observational requirement: SI1.2 OR1.2a from Science requirement document.

- GREAT 21 [8 12 15] : OR 1.2.a verification binaries

Detectability of verification binaries and measurement of the their frequency evolution FoM: number of selected sources. The source is selected if

SNR > 7
s_P/P < 1e-06

Summary

Conducting monte-carlo over 1000 trials, randomizing polarization and initial phase

Name	SNR total	sigma_P / P	selected
HMCnc	93.242723	2.75914e-08	True
V407Vul	110.391854	3.79669e-08	True
ESCet	105.139051	4.3869e-08	True
SDSSJ1351	22.872569	3.11174e-07	True
AMCVn	110.157401	7.34979e-08	True
SDSSJ1908	27.761092	2.88356e-07	True
HPLib	64.234043	1.2966e-07	True
PTF1919	4.605517	2.19701e-06	False
CX1751	5.569768	1.9927e-06	False
CRBoo	25.395455	4.31144e-07	True
V803Cen	36.914110	3.61151e-07	True
SDSSJ0651	82.646942	7.57964e-08	True
SDSSJ0935	105.028637	9.79928e-08	True
SDSSJ1630	6.919252	2.48961e-06	False
SDSSJ0923	6.062452	5.23624e-06	False
CDm30	4.927315	6.87732e-06	False
ZTFJ1539	79.739882	3.896e-08	True
ZTFJ0538	55.556982	1.20788e-07	True
PTFJ0533	12.693759	7.19708e-07	True
ZTFJ2029	9.829045	9.67703e-07	True
ZTFJ1749	3.122421	3.68055e-06	False
ZTFJ2243	95.370790	4.55485e-08	True
SDSSJ2322	15.102591	6.22376e-07	True
4U1820-30	13.355217	4.2223e-07	True
SDSSJ1235	6.490345	3.47053e-06	False
ZTFJ0722	6.311469	1.66377e-06	False
KLDra	4.039122	2.89134e-06	False
PTF0719	3.819697	3.74239e-06	False
CP Eri	3.496192	3.60634e-06	False
ZTFJ2130	2.600650	7.11319e-06	False
ZTFJ1901	2.477308	7.41128e-06	False
HD265435	2.987666	1.6352e-05	False
SMSSJ0338	7.731017	2.15973e-06	False
SDSSJ0634	27.769259	4.84987e-07	True
SDSSJ1337	6.965921	6.36706e-06	False
ZTFJ1946	1.398360	1.06936e-05	False
ZTFJ0640	2.667885	6.50206e-06	False
ZTFJ2320	0.766123	3.46661e-05	False
SDSSJ1043	0.999072	2.13781e-05	False
SDSSJ0822	2.245288	8.97162e-06	False
SDSSJ0106	3.597213	4.89868e-06	False
ZTFJ1905	23.607684	3.19993e-07	True
WD0957	2.092983	2.07797e-05	False
J1239m2041	19.829365	5.37297e-07	True
J2322p2103	8.237648	1.83104e-06	False

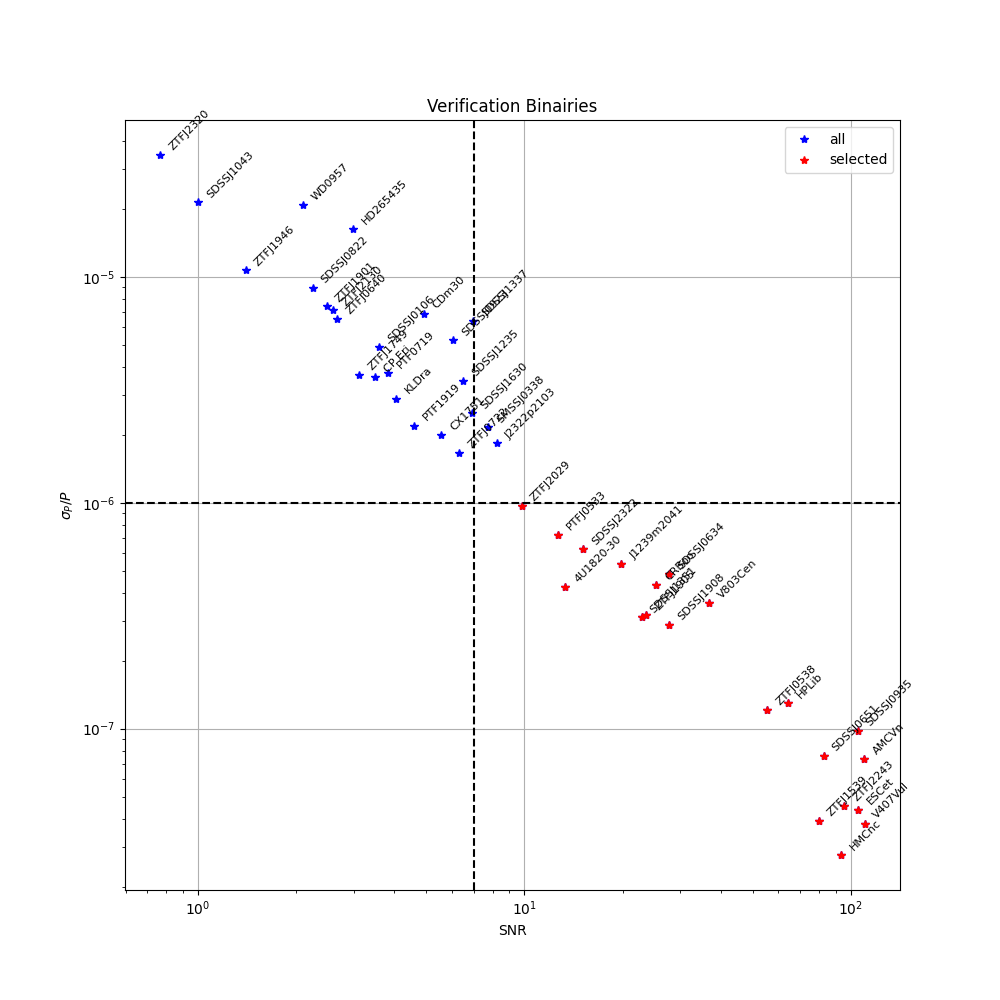

Plot relative error on period as a function of SNR

Detailed results

Source 0 : HMCnc

Name: HMCnc []
Amplitude: 4.252225600012621e-23 [strain]
Frequency: 0.00622027623506547 [Hz]
FrequencyDerivative: 7.48526873173375e-16 [Hz^2]
EclipticLatitude: -0.08209991730272174 [Radian]
EclipticLongitude: 2.1020513457075882 [Radian]
Inclination: 0.6632251157578452 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.40832326916257733 [Radian]
GalacticLongitude: 3.6115155733722584 [Radian]
Period: 321.529129 [seconds]
Mass1: 0.55 [SolarMass]
ErrorMass1: 0.0 [SolarMass]
Mass2: 0.27 [SolarMass]
ErrorMass2: 0.0 [SolarMass]
Distance: 7500.0 [pc]
ErrorDistance: 2500.0 [pc]

Signal to Noise Ratio

snr_tot = 93.14061536337914
snr_X = 66.75961408242318
snr_Y = 62.227848506218976
snr_Z = 66.88163520234617

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 93.242723
s_P/P < 0.000000

Source 1 : V407Vul

Name: V407Vul []
Amplitude: 9.381080043639149e-23 [strain]
Frequency: 0.0035124925221229515 [Hz]
FrequencyDerivative: 8.282059138166233e-17 [Hz^2]
EclipticLatitude: 0.8165220844186913 [Radian]
EclipticLongitude: 5.1485583542879 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.11171154410314905 [Radian]
GalacticLongitude: 1.0075454159205384 [Radian]
Period: 569.39623 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.177 [SolarMass]
ErrorMass2: 0.071 [SolarMass]
Distance: 2089.0 [pc]
ErrorDistance: 684.0 [pc]

Signal to Noise Ratio

snr_tot = 110.20502695783544
snr_X = 78.5427911346588
snr_Y = 73.18608698698793
snr_Z = 81.42044161536157

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 110.391854
s_P/P < 0.000000

Source 2 : ESCet

Name: ESCet []
Amplitude: 9.517180373037876e-23 [strain]
Frequency: 0.0032247077104776804 [Hz]
FrequencyDerivative: 5.5367655902272526e-17 [Hz^2]
EclipticLatitude: -0.3548927927646196 [Radian]
EclipticLongitude: 0.42949142003443425 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -1.1495296958995294 [Radian]
GalacticLongitude: 2.949054911826787 [Radian]
Period: 620.21125 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.161 [SolarMass]
ErrorMass2: 0.064 [SolarMass]
Distance: 1779.0 [pc]
ErrorDistance: 234.0 [pc]

Signal to Noise Ratio

snr_tot = 104.4079474995227
snr_X = 74.32338659648846
snr_Y = 69.90758302154059
snr_Z = 76.8039217449314

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 105.139051
s_P/P < 0.000000

Source 3 : SDSSJ1351

Name: SDSSJ1351 []
Amplitude: 5.328151919216593e-23 [strain]
Frequency: 0.002129925452609159 [Hz]
FrequencyDerivative: 7.681783462488883e-18 [Hz^2]
EclipticLatitude: 0.07805308612247897 [Radian]
EclipticLongitude: 3.636986034854161 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.9271887118294676 [Radian]
GalacticLongitude: 5.733443244715664 [Radian]
Period: 939.0 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.1 [SolarMass]
ErrorMass2: 0.04 [SolarMass]
Distance: 1530.0 [pc]
ErrorDistance: 755.0 [pc]

Signal to Noise Ratio

snr_tot = 22.675755710856023
snr_X = 16.386251462796753
snr_Y = 15.113807560533603
snr_Z = 16.55745167725121

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 22.872569
s_P/P < 0.000000

Source 4 : AMCVn

Name: AMCVn []
Amplitude: 2.8010083778078857e-22 [strain]
Frequency: 0.0019441405644734365 [Hz]
FrequencyDerivative: 6.061849604020092e-18 [Hz^2]
EclipticLatitude: 0.6534962655570156 [Radian]
EclipticLongitude: 2.9737231526595265 [Radian]
Inclination: 0.7504915783575616 [Radian]
ErrorInclination: 2.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 1.3777314955977877 [Radian]
GalacticLongitude: 2.4475502592294838 [Radian]
Period: 1028.7322 [seconds]
Mass1: 0.68 [SolarMass]
ErrorMass1: 0.06 [SolarMass]
Mass2: 0.125 [SolarMass]
ErrorMass2: 0.012 [SolarMass]
Distance: 302.0 [pc]
ErrorDistance: 3.0 [pc]

Signal to Noise Ratio

snr_tot = 110.06918599566563
snr_X = 76.28165302664667
snr_Y = 79.90493979165424
snr_Z = 77.24441393214423

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 110.157401
s_P/P < 0.000000

Source 5 : SDSSJ1908

Name: SDSSJ1908 []
Amplitude: 6.476701617700626e-23 [strain]
Frequency: 0.0018431345082701447 [Hz]
FrequencyDerivative: 3.863850949839444e-18 [Hz^2]
EclipticLatitude: 1.0725775888476425 [Radian]
EclipticLongitude: 5.204803793379396 [Radian]
Inclination: 0.2617993877991494 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.24320988593615786 [Radian]
GalacticLongitude: 1.2333613505313208 [Radian]
Period: 1085.108 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.085 [SolarMass]
ErrorMass2: 0.034 [SolarMass]
Distance: 977.0 [pc]
ErrorDistance: 32.0 [pc]

Signal to Noise Ratio

snr_tot = 27.761062230051483
snr_X = 19.62843266492967
snr_Y = 19.595293663239694
snr_Z = 19.663243114415227

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 27.761092
s_P/P < 0.000000

Source 6 : HPLib

Name: HPLib []
Amplitude: 1.549809947147088e-22 [strain]
Frequency: 0.0018137299356125872 [Hz]
FrequencyDerivative: 2.5249638188534677e-18 [Hz^2]
EclipticLatitude: 0.08656626037851765 [Radian]
EclipticLongitude: 4.102997781403207 [Radian]
Inclination: 0.5235987755982988 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.5680470756588385 [Radian]
GalacticLongitude: 6.144538096730409 [Radian]
Period: 1102.7 [seconds]
Mass1: 0.645 [SolarMass]
ErrorMass1: 0.15500000000000003 [SolarMass]
Mass2: 0.068 [SolarMass]
ErrorMass2: 0.019999999999999997 [SolarMass]
Distance: 280.0 [pc]
ErrorDistance: 3.0 [pc]

Signal to Noise Ratio

snr_tot = 64.20856339946326
snr_X = 46.903966723422556
snr_Y = 45.759849815022726
snr_Z = 43.46869768908203

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 64.234043
s_P/P < 0.000000

Source 7 : PTF1919

Name: PTF1919 []
Amplitude: 3.1401614410063875e-23 [strain]
Frequency: 0.001484390887621219 [Hz]
FrequencyDerivative: 1.366433230495363e-18 [Hz^2]
EclipticLatitude: 1.20478453060435 [Radian]
EclipticLongitude: 5.393038804872241 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.2722312207383195 [Radian]
GalacticLongitude: 1.3891860914786265 [Radian]
Period: 1347.354 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.066 [SolarMass]
ErrorMass2: 0.026 [SolarMass]
Distance: 1364.24 [pc]
ErrorDistance: 471.774 [pc]

Signal to Noise Ratio

snr_tot = 4.60409253979008
snr_X = 3.5080660522011833
snr_Y = 3.000090744564696
snr_Z = 3.2385213346138464

Parameter estimations with A,E,T

Source 8 : CX1751

Name: CX1751 []
Amplitude: 3.637762985689425e-23 [strain]
Frequency: 0.001455604075691412 [Hz]
FrequencyDerivative: 1.2341675089779478e-18 [Hz^2]
EclipticLatitude: -0.10913135555544068 [Radian]
EclipticLongitude: 4.678487037000467 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.024623105087136003 [Radian]
GalacticLongitude: 6.282921762462535 [Radian]
Period: 1374.0 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.064 [SolarMass]
ErrorMass2: 0.026 [SolarMass]
Distance: 1128.0 [pc]
ErrorDistance: 258.0 [pc]

Signal to Noise Ratio

snr_tot = 5.5202486355813365
snr_X = 3.6644126984850858
snr_Y = 4.043188128376493
snr_Z = 3.991561205617362

Parameter estimations with A,E,T

Source 9 : CRBoo

Name: CRBoo []
Amplitude: 1.2341101754286283e-22 [strain]
Frequency: 0.001359336904583249 [Hz]
FrequencyDerivative: 1.0610679420885857e-18 [Hz^2]
EclipticLatitude: 0.3123640022949429 [Radian]
EclipticLongitude: 3.5302612147438115 [Radian]
Inclination: 0.5235987755982988 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 1.1604414943829977 [Radian]
GalacticLongitude: 5.950998535976757 [Radian]
Period: 1471.3056 [seconds]
Mass1: 0.885 [SolarMass]
ErrorMass1: 0.21500000000000002 [SolarMass]
Mass2: 0.066 [SolarMass]
ErrorMass2: 0.022 [SolarMass]
Distance: 351.0 [pc]
ErrorDistance: 5.0 [pc]

Signal to Noise Ratio

snr_tot = 25.386800287547594
snr_X = 17.886741626302204
snr_Y = 17.39193652786479
snr_Z = 18.554979049415742

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 25.395455
s_P/P < 0.000000

Source 10 : V803Cen

Name: V803Cen []
Amplitude: 1.9336512427656877e-22 [strain]
Frequency: 0.0012528188423953895 [Hz]
FrequencyDerivative: 1.0642059768279332e-18 [Hz^2]
EclipticLatitude: -0.5291276111568994 [Radian]
EclipticLongitude: 3.772765199391373 [Radian]
Inclination: 0.23561944901923448 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.3617404314268487 [Radian]
GalacticLongitude: 5.39947449234655 [Radian]
Period: 1596.4 [seconds]
Mass1: 0.975 [SolarMass]
ErrorMass1: 0.19499999999999995 [SolarMass]
Mass2: 0.08399999999999999 [SolarMass]
ErrorMass2: 0.025 [SolarMass]
Distance: 287.0 [pc]
ErrorDistance: 5.0 [pc]

Signal to Noise Ratio

snr_tot = 36.91376970407971
snr_X = 26.79518749977227
snr_Y = 25.440466431647426
snr_Z = 26.051553879531024

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 36.914110
s_P/P < 0.000000

Source 11 : SDSSJ0651

Name: SDSSJ0651 []
Amplitude: 1.5772063588131273e-22 [strain]
Frequency: 0.0026136734170606798 [Hz]
FrequencyDerivative: 2.6309270824483166e-17 [Hz^2]
EclipticLatitude: 0.10134025796313308 [Radian]
EclipticLongitude: 1.768608725711838 [Radian]
Inclination: 1.5166911199830724 [Radian]
ErrorInclination: 1.3 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.2214578474685525 [Radian]
GalacticLongitude: 3.2625038281802046 [Radian]
Period: 765.206543 [seconds]
Mass1: 0.247 [SolarMass]
ErrorMass1: 0.0125 [SolarMass]
Mass2: 0.49 [SolarMass]
ErrorMass2: 0.02 [SolarMass]
Distance: 958.0 [pc]
ErrorDistance: 370.0 [pc]

Signal to Noise Ratio

snr_tot = 79.34637244680903
snr_X = 51.91088686349063
snr_Y = 54.60463898037536
snr_Z = 61.292601190683165

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 82.646942
s_P/P < 0.000000

Source 12 : SDSSJ0935

Name: SDSSJ0935 []
Amplitude: 4.883549229993149e-22 [strain]
Frequency: 0.0016835016835016834 [Hz]
FrequencyDerivative: 8.975820347190449e-18 [Hz^2]
EclipticLatitude: 0.4903299359122858 [Radian]
EclipticLongitude: 2.2859340714367815 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.8268951116928656 [Radian]
GalacticLongitude: 3.0731687655946076 [Radian]
Period: 1188.0 [seconds]
Mass1: 0.312 [SolarMass]
ErrorMass1: 0.019 [SolarMass]
Mass2: 0.75 [SolarMass]
ErrorMass2: 0.24 [SolarMass]
Distance: 395.0 [pc]
ErrorDistance: 203.0 [pc]

Signal to Noise Ratio

snr_tot = 104.41371003180447
snr_X = 77.6193054095613
snr_Y = 70.68109313287658
snr_Z = 73.01738675178377

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 105.028637
s_P/P < 0.000000

Source 13 : SDSSJ1630

Name: SDSSJ1630 []
Amplitude: 1.3840501951284948e-22 [strain]
Frequency: 0.0008375209380234506 [Hz]
FrequencyDerivative: 6.724121209995266e-19 [Hz^2]
EclipticLatitude: 1.100477233978783 [Radian]
EclipticLongitude: 4.0451772827046675 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.7567817449817492 [Radian]
GalacticLongitude: 1.1706970490677162 [Radian]
Period: 2388.0 [seconds]
Mass1: 0.298 [SolarMass]
ErrorMass1: 0.019 [SolarMass]
Mass2: 0.76 [SolarMass]
ErrorMass2: 0.24 [SolarMass]
Distance: 848.0 [pc]
ErrorDistance: 167.0 [pc]

Signal to Noise Ratio

snr_tot = 6.915816715749868
snr_X = 5.223056133284077
snr_Y = 4.890809817872813
snr_Z = 4.532281827191096

Parameter estimations with A,E,T

Source 14 : SDSSJ0923

Name: SDSSJ0923 []
Amplitude: 2.7393487754035697e-22 [strain]
Frequency: 0.0005149754871668109 [Hz]
FrequencyDerivative: 1.0507522054190313e-19 [Hz^2]
EclipticLatitude: 0.2518301682983234 [Radian]
EclipticLongitude: 2.3336859882255654 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.781478153897469 [Radian]
GalacticLongitude: 3.417701995926044 [Radian]
Period: 3883.68 [seconds]
Mass1: 0.275 [SolarMass]
ErrorMass1: 0.0115 [SolarMass]
Mass2: 0.76 [SolarMass]
ErrorMass2: 0.23 [SolarMass]
Distance: 288.0 [pc]
ErrorDistance: 5.0 [pc]

Signal to Noise Ratio

snr_tot = 6.0139445745571285
snr_X = 4.482692778238877
snr_Y = 4.106259047630939
snr_Z = 4.158738701022597

Parameter estimations with A,E,T

Source 15 : CDm30

Name: CDm30 []
Amplitude: 3.940291572857928e-22 [strain]
Frequency: 0.0004726130368715878 [Hz]
FrequencyDerivative: 1.440040231925979e-19 [Hz^2]
EclipticLatitude: -0.28998646739508915 [Radian]
EclipticLongitude: 3.860224001878778 [Radian]
Inclination: 1.4468779499032993 [Radian]
ErrorInclination: 0.04 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.505061633612867 [Radian]
GalacticLongitude: 5.628468671525213 [Radian]
Period: 4231.791855 [seconds]
Mass1: 0.54 [SolarMass]
ErrorMass1: 0.02 [SolarMass]
Mass2: 0.79 [SolarMass]
ErrorMass2: 0.01 [SolarMass]
Distance: 355.0 [pc]
ErrorDistance: 7.0 [pc]

Signal to Noise Ratio

snr_tot = 4.772928444678833
snr_X = 3.68589112870817
snr_Y = 3.1119895579059453
snr_Z = 3.3016410320100267

Parameter estimations with A,E,T

Source 16 : ZTFJ1539

Name: ZTFJ1539 []
Amplitude: 9.402415441563617e-23 [strain]
Frequency: 0.004821699107149872 [Hz]
FrequencyDerivative: 2.53782494976533e-16 [Hz^2]
EclipticLatitude: 1.1547376242549767 [Radian]
EclipticLongitude: 3.5784065568008283 [Radian]
Inclination: 1.4686945655532282 [Radian]
ErrorInclination: 0.605 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.8828206969145198 [Radian]
GalacticLongitude: 1.4097827219814119 [Radian]
Period: 414.7915404 [seconds]
Mass1: 0.61 [SolarMass]
ErrorMass1: 0.0195 [SolarMass]
Mass2: 0.21 [SolarMass]
ErrorMass2: 0.015 [SolarMass]
Distance: 2469.0 [pc]
ErrorDistance: 1253.0 [pc]

Signal to Noise Ratio

snr_tot = 79.52367693089583
snr_X = 60.51376006993357
snr_Y = 31.083726650698715
snr_Z = 69.09552071773597

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 79.739882
s_P/P < 0.000000

Source 17 : ZTFJ0538

Name: ZTFJ0538 []
Amplitude: 1.632259258978156e-22 [strain]
Frequency: 0.002307861021209347 [Hz]
FrequencyDerivative: 1.9547193237011714e-17 [Hz^2]
EclipticLatitude: -0.06033123991104798 [Radian]
EclipticLongitude: 1.4804953705328108 [Radian]
Inclination: 1.4910347799787558 [Radian]
ErrorInclination: 0.08 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.10858216875432322 [Radian]
GalacticLongitude: 3.2604565569676147 [Radian]
Period: 866.60331 [seconds]
Mass1: 0.45 [SolarMass]
ErrorMass1: 0.05 [SolarMass]
Mass2: 0.32 [SolarMass]
ErrorMass2: 0.03 [SolarMass]
Distance: 999.0 [pc]
ErrorDistance: 366.0 [pc]

Signal to Noise Ratio

snr_tot = 53.484341775924406
snr_X = 34.17604210393689
snr_Y = 40.576603790294165
snr_Z = 38.400878737549604

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 55.556982
s_P/P < 0.000000

Source 18 : PTFJ0533

Name: PTFJ0533 []
Amplitude: 8.135862404040586e-23 [strain]
Frequency: 0.0016207810320125486 [Hz]
FrequencyDerivative: 3.962556470469602e-18 [Hz^2]
EclipticLatitude: -0.3686727481892306 [Radian]
EclipticLongitude: 1.4469784718731191 [Radian]
Inclination: 1.270599695451872 [Radian]
ErrorInclination: 1.1 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.283158727185056 [Radian]
GalacticLongitude: 3.5220953744755805 [Radian]
Period: 1233.97298 [seconds]
Mass1: 0.652 [SolarMass]
ErrorMass1: 0.0385 [SolarMass]
Mass2: 0.167 [SolarMass]
ErrorMass2: 0.03 [SolarMass]
Distance: 1173.0 [pc]
ErrorDistance: 390.0 [pc]

Signal to Noise Ratio

snr_tot = 12.506563617681461
snr_X = 8.185982951335705
snr_Y = 9.441706382678356
snr_Z = 8.857238871339426

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 12.693759
s_P/P < 0.000001

Source 19 : ZTFJ2029

Name: ZTFJ2029 []
Amplitude: 8.349873073226483e-23 [strain]
Frequency: 0.0015973720048555093 [Hz]
FrequencyDerivative: 3.6342351136523925e-18 [Hz^2]
EclipticLatitude: 0.5835320581999007 [Radian]
EclipticLongitude: 5.487960070233999 [Radian]
Inclination: 1.512153263927887 [Radian]
ErrorInclination: 0.55 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.23501731042729646 [Radian]
GalacticLongitude: 1.02247670767135 [Radian]
Period: 1252.056499 [seconds]
Mass1: 0.32 [SolarMass]
ErrorMass1: 0.04 [SolarMass]
Mass2: 0.3 [SolarMass]
ErrorMass2: 0.04 [SolarMass]
Distance: 1095.0 [pc]
ErrorDistance: 644.0 [pc]

Signal to Noise Ratio

snr_tot = 9.640020065726663
snr_X = 7.938030071032202
snr_Y = 6.071886790929858
snr_Z = 6.285472442623259

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 9.829045
s_P/P < 0.000001

Source 20 : ZTFJ1749

Name: ZTFJ1749 []
Amplitude: 4.3266684129295276e-23 [strain]
Frequency: 0.0012610071024396585 [Hz]
FrequencyDerivative: 1.7276778667358457e-18 [Hz^2]
EclipticLatitude: 0.5728592035594019 [Radian]
EclipticLongitude: 4.660689189243602 [Radian]
Inclination: 1.4913838458291546 [Radian]
ErrorInclination: 1.275 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.31245756933828484 [Radian]
GalacticLongitude: 0.6023009075584792 [Radian]
Period: 1586.03389 [seconds]
Mass1: 0.4 [SolarMass]
ErrorMass1: 0.060000000000000005 [SolarMass]
Mass2: 0.28 [SolarMass]
ErrorMass2: 0.045 [SolarMass]
Distance: 2042.0 [pc]
ErrorDistance: 1244.0 [pc]

Signal to Noise Ratio

snr_tot = 3.0728322822130893
snr_X = 1.7893886594313517
snr_Y = 2.398417598130502
snr_Z = 2.2822691428070625

Parameter estimations with A,E,T

Source 21 : ZTFJ2243

Name: ZTFJ2243 []
Amplitude: 1.2224933711850275e-22 [strain]
Frequency: 0.0037883459454630852 [Hz]
FrequencyDerivative: 1.1382056543823663e-16 [Hz^2]
EclipticLatitude: 0.9417777352960822 [Radian]
EclipticLongitude: 0.231053952286183 [Radian]
Inclination: 1.4290755915329567 [Radian]
ErrorInclination: 1.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.09511346291668299 [Radian]
GalacticLongitude: 1.8177848505616219 [Radian]
Period: 527.93489 [seconds]
Mass1: 0.349 [SolarMass]
ErrorMass1: 0.08349999999999999 [SolarMass]
Mass2: 0.384 [SolarMass]
ErrorMass2: 0.094 [SolarMass]
Distance: 1756.0 [pc]
ErrorDistance: 726.0 [pc]

Signal to Noise Ratio

snr_tot = 95.0023040473137
snr_X = 54.41561757615881
snr_Y = 61.63075854369265
snr_Z = 81.96723838105666

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 95.370790
s_P/P < 0.000000

Source 22 : SDSSJ2322

Name: SDSSJ2322 []
Amplitude: 7.030541969534868e-23 [strain]
Frequency: 0.0016647244880972198 [Hz]
FrequencyDerivative: 2.7171267235059494e-18 [Hz^2]
EclipticLatitude: 0.14760628961836086 [Radian]
EclipticLongitude: 6.168576488687758 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.8937900912633042 [Radian]
GalacticLongitude: 1.50012270939389 [Radian]
Period: 1201.4 [seconds]
Mass1: 0.34 [SolarMass]
ErrorMass1: 0.02 [SolarMass]
Mass2: 0.17 [SolarMass]
ErrorMass2: 0.0 [SolarMass]
Distance: 859.0 [pc]
ErrorDistance: 206.0 [pc]

Signal to Noise Ratio

snr_tot = 14.97517223312736
snr_X = 10.042785573266373
snr_Y = 11.071781012211588
snr_Z = 10.62630928332909

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 15.102591
s_P/P < 0.000001

Source 23 : 4U1820-30

Name: 4U1820-30 []
Amplitude: 1.3574749648216346e-23 [strain]
Frequency: 0.00291970802919708 [Hz]
FrequencyDerivative: 2.5041740708844685e-17 [Hz^2]
EclipticLatitude: -0.1226394067522336 [Radian]
EclipticLongitude: 4.802117534039483 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.1381323383198392 [Radian]
GalacticLongitude: 0.04868770481363382 [Radian]
Period: 685.0 [seconds]
Mass1: 1.4 [SolarMass]
ErrorMass1: 0.0 [SolarMass]
Mass2: 0.069 [SolarMass]
ErrorMass2: 0.0 [SolarMass]
Distance: 7600.0 [pc]
ErrorDistance: 0.0 [pc]

Signal to Noise Ratio

snr_tot = 13.236194438574255
snr_X = 8.798800652608977
snr_Y = 9.451492125193406
snr_Z = 9.776390651072695

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 13.355217
s_P/P < 0.000000

Source 24 : SDSSJ1235

Name: SDSSJ1235 []
Amplitude: 1.1344601656239726e-22 [strain]
Frequency: 0.0006733027384568979 [Hz]
FrequencyDerivative: 1.5061078531032115e-19 [Hz^2]
EclipticLatitude: 0.3133292723651548 [Radian]
EclipticLongitude: 3.1727790347465317 [Radian]
Inclination: 0.47123889803846897 [Radian]
ErrorInclination: 3.8 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 1.3619153219162152 [Radian]
GalacticLongitude: 4.965786353164739 [Radian]
Period: 2970.432 [seconds]
Mass1: 0.35 [SolarMass]
ErrorMass1: 0.01 [SolarMass]
Mass2: 0.27 [SolarMass]
ErrorMass2: 0.04 [SolarMass]
Distance: 446.0 [pc]
ErrorDistance: 28.0 [pc]

Signal to Noise Ratio

snr_tot = 6.488922090033325
snr_X = 4.408443123283961
snr_Y = 4.6682308060555995
snr_Z = 4.683150038431499

Parameter estimations with A,E,T

Source 25 : ZTFJ0722

Name: ZTFJ0722 []
Amplitude: 7.176054456355187e-23 [strain]
Frequency: 0.0014059273072807481 [Hz]
FrequencyDerivative: 2.841354105434733e-18 [Hz^2]
EclipticLatitude: -0.7027587558682672 [Radian]
EclipticLongitude: 2.0225957764691134 [Radian]
Inclination: 1.5648622073381158 [Radian]
ErrorInclination: 0.22 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.03247010540410251 [Radian]
GalacticLongitude: 4.0664949840991484 [Radian]
Period: 1422.548655 [seconds]
Mass1: 0.38 [SolarMass]
ErrorMass1: 0.04 [SolarMass]
Mass2: 0.33 [SolarMass]
ErrorMass2: 0.03 [SolarMass]
Distance: 1461.0 [pc]
ErrorDistance: 785.0 [pc]

Signal to Noise Ratio

snr_tot = 6.234545967166358
snr_X = 4.601525964806098
snr_Y = 3.389465977483197
snr_Z = 5.06356703937809

Parameter estimations with A,E,T

Source 26 : KLDra

Name: KLDra []
Amplitude: 3.5852403170094165e-23 [strain]
Frequency: 0.001331729930497015 [Hz]
FrequencyDerivative: 7.678159257485725e-19 [Hz^2]
EclipticLatitude: 1.3669711490874294 [Radian]
EclipticLongitude: 5.831653659768095 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.3350892537488953 [Radian]
GalacticLongitude: 1.588490474751615 [Radian]
Period: 1501.806 [seconds]
Mass1: 0.76 [SolarMass]
ErrorMass1: 0.0 [SolarMass]
Mass2: 0.057 [SolarMass]
ErrorMass2: 0.0 [SolarMass]
Distance: 929.8 [pc]
ErrorDistance: 91.1 [pc]

Signal to Noise Ratio

snr_tot = 4.038136380888638
snr_X = 2.9306463121970947
snr_Y = 3.051926945612878
snr_Z = 2.5604868651852626

Parameter estimations with A,E,T

Source 27 : PTF0719

Name: PTF0719 []
Amplitude: 3.661492297718764e-23 [strain]
Frequency: 0.0012451749470800647 [Hz]
FrequencyDerivative: 5.78998780700755e-19 [Hz^2]
EclipticLatitude: 0.46288428903477835 [Radian]
EclipticLongitude: 1.821851692332016 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.427509673629751 [Radian]
GalacticLongitude: 2.943621701865329 [Radian]
Period: 1606.2 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.053 [SolarMass]
ErrorMass2: 0.021 [SolarMass]
Distance: 839.9 [pc]
ErrorDistance: 201.6 [pc]

Signal to Noise Ratio

snr_tot = 3.793883454377222
snr_X = 2.589002052439958
snr_Y = 2.612560933194492
snr_Z = 2.8392572254142183

Parameter estimations with A,E,T

Source 28 : CP Eri

Name: CP Eri []
Amplitude: 3.6165138587851763e-23 [strain]
Frequency: 0.0011494252873563218 [Hz]
FrequencyDerivative: 3.9981861335686013e-19 [Hz^2]
EclipticLatitude: -0.4612490272349958 [Radian]
EclipticLongitude: 0.7352875012661351 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.9234502165716957 [Radian]
GalacticLongitude: 3.3458328279874214 [Radian]
Period: 1740.0 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.049 [SolarMass]
ErrorMass2: 0.02 [SolarMass]
Distance: 746.5 [pc]
ErrorDistance: 202.9 [pc]

Signal to Noise Ratio

snr_tot = 3.476440479029559
snr_X = 2.5841797282672596
snr_Y = 2.367075543063177
snr_Z = 2.418062024125347

Parameter estimations with A,E,T

Source 29 : ZTFJ2130

Name: ZTFJ2130 []
Amplitude: 7.796022013910842e-23 [strain]
Frequency: 0.0008473117889624252 [Hz]
FrequencyDerivative: 6.046149555403453e-19 [Hz^2]
EclipticLatitude: 0.9502321548033213 [Radian]
EclipticLongitude: 6.076617266302188 [Radian]
Inclination: 1.5079644737231006 [Radian]
ErrorInclination: 1.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.08944637883545739 [Radian]
GalacticLongitude: 1.5619911407185851 [Radian]
Period: 2360.4062 [seconds]
Mass1: 0.545 [SolarMass]
ErrorMass1: 0.02 [SolarMass]
Mass2: 0.337 [SolarMass]
ErrorMass2: 0.015 [SolarMass]
Distance: 1307.3 [pc]
ErrorDistance: 41.8 [pc]

Signal to Noise Ratio

snr_tot = 2.584819467211415
snr_X = 1.463264686995531
snr_Y = 2.3018653254294663
snr_Z = 1.6068852343918811

Parameter estimations with A,E,T

Source 30 : ZTFJ1901

Name: ZTFJ1901 []
Amplitude: 8.29173098474444e-23 [strain]
Frequency: 0.00082098160690459 [Hz]
FrequencyDerivative: 4.0659949455221405e-19 [Hz^2]
EclipticLatitude: 1.3025990031641006 [Radian]
EclipticLongitude: 5.354831660381907 [Radian]
Inclination: 1.5233233711406509 [Radian]
ErrorInclination: 0.5 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.34869933125594704 [Radian]
GalacticLongitude: 1.4544474428691985 [Radian]
Period: 2436.10817 [seconds]
Mass1: 0.36 [SolarMass]
ErrorMass1: 0.04 [SolarMass]
Mass2: 0.36 [SolarMass]
ErrorMass2: 0.05 [SolarMass]
Distance: 908.7 [pc]
ErrorDistance: 78.0 [pc]

Signal to Noise Ratio

snr_tot = 2.475623344404146
snr_X = 2.2987410413393805
snr_Y = 0.798425121104198
snr_Z = 1.8086629337135123

Parameter estimations with A,E,T

Source 31 : HD265435

Name: HD265435 []
Amplitude: 3.36366428613472e-22 [strain]
Frequency: 0.0003363652494123635 [Hz]
FrequencyDerivative: 5.75623060599934e-20 [Hz^2]
EclipticLatitude: 0.17705111416124933 [Radian]
EclipticLongitude: 1.7686261251746653 [Radian]
Inclination: 1.117010721276371 [Radian]
ErrorInclination: 9.5 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.2579980606883058 [Radian]
GalacticLongitude: 3.1942370198176984 [Radian]
Period: 5945.917432 [seconds]
Mass1: 0.63 [SolarMass]
ErrorMass1: 0.125 [SolarMass]
Mass2: 1.01 [SolarMass]
ErrorMass2: 0.15 [SolarMass]
Distance: 461.096 [pc]
ErrorDistance: 11.9846 [pc]

Signal to Noise Ratio

snr_tot = 2.952241958928047
snr_X = 1.9895217530058897
snr_Y = 2.054537166818906
snr_Z = 2.212294844993945

Parameter estimations with A,E,T

Source 32 : SMSSJ0338

Name: SMSSJ0338 []
Amplitude: 1.209422004446953e-22 [strain]
Frequency: 0.0010892652905615163 [Hz]
FrequencyDerivative: 8.172250884122334e-19 [Hz^2]
EclipticLatitude: 1.0367520707203768 [Radian]
EclipticLongitude: 1.4047307090932146 [Radian]
Inclination: 1.2042771838760873 [Radian]
ErrorInclination: 9.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.36266545593040567 [Radian]
GalacticLongitude: 2.248989386217845 [Radian]
Period: 1836.1 [seconds]
Mass1: 0.23 [SolarMass]
ErrorMass1: 0.015 [SolarMass]
Mass2: 0.38 [SolarMass]
ErrorMass2: 0.04 [SolarMass]
Distance: 536.12 [pc]
ErrorDistance: 16.08 [pc]

Signal to Noise Ratio

snr_tot = 7.710561195431507
snr_X = 4.8108488934630955
snr_Y = 6.137358288270315
snr_Z = 5.325969149527265

Parameter estimations with A,E,T

Source 33 : SDSSJ0634

Name: SDSSJ0634 []
Amplitude: 1.7324113026808865e-22 [strain]
Frequency: 0.0012567550584391101 [Hz]
FrequencyDerivative: 1.4529589778751023e-18 [Hz^2]
EclipticLatitude: 0.2589911876429382 [Radian]
EclipticLongitude: 1.6943530464262384 [Radian]
Inclination: 0.6457718232379019 [Radian]
ErrorInclination: 7.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.23249705498741663 [Radian]
GalacticLongitude: 3.084558784293123 [Radian]
Period: 1591.4 [seconds]
Mass1: 0.452 [SolarMass]
ErrorMass1: 0.066 [SolarMass]
Mass2: 0.209 [SolarMass]
ErrorMass2: 0.027500000000000004 [SolarMass]
Distance: 433.261 [pc]
ErrorDistance: 16.0567 [pc]

Signal to Noise Ratio

snr_tot = 27.74258143649529
snr_X = 18.742527113147105
snr_Y = 19.669565828766867
snr_Z = 20.4027128292785

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 27.769259
s_P/P < 0.000000

Source 34 : SDSSJ1337

Name: SDSSJ1337 []
Amplitude: 4.388710706847701e-22 [strain]
Frequency: 0.0003365330899526027 [Hz]
FrequencyDerivative: 1.856006058763817e-20 [Hz^2]
EclipticLatitude: 0.7953751262903275 [Radian]
EclipticLongitude: 3.1920200839679365 [Radian]
Inclination: 0.22689280275926285 [Radian]
ErrorInclination: 1.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 1.2929381645481473 [Radian]
GalacticLongitude: 1.5540900351948068 [Radian]
Period: 5942.952 [seconds]
Mass1: 0.51 [SolarMass]
ErrorMass1: 0.01 [SolarMass]
Mass2: 0.32 [SolarMass]
ErrorMass2: 0.01 [SolarMass]
Distance: 113.778 [pc]
ErrorDistance: 0.565753 [pc]

Signal to Noise Ratio

snr_tot = 6.965894709896541
snr_X = 4.863303993526766
snr_Y = 4.9648813977489725
snr_Z = 4.948089528059932

Parameter estimations with A,E,T

Source 35 : ZTFJ1946

Name: ZTFJ1946 []
Amplitude: 2.800387458179067e-23 [strain]
Frequency: 0.0009931367250683863 [Hz]
FrequencyDerivative: 5.661928011032228e-19 [Hz^2]
EclipticLatitude: 0.9085153475414691 [Radian]
EclipticLongitude: 5.375153820485151 [Radian]
Inclination: 1.3452997874372292 [Radian]
ErrorInclination: 1.4 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.06394362780531625 [Radian]
GalacticLongitude: 1.174875367296991 [Radian]
Period: 2013.82141 [seconds]
Mass1: 0.272 [SolarMass]
ErrorMass1: 0.0445 [SolarMass]
Mass2: 0.307 [SolarMass]
ErrorMass2: 0.091 [SolarMass]
Distance: 2116.5 [pc]
ErrorDistance: 302.9 [pc]

Signal to Noise Ratio

snr_tot = 1.392147542837879
snr_X = 1.1426439759385107
snr_Y = 0.7908077256346869
snr_Z = 0.9879538441250657

Parameter estimations with A,E,T

Source 36 : ZTFJ0640

Name: ZTFJ0640 []
Amplitude: 4.9625317873952305e-23 [strain]
Frequency: 0.0008944479824831307 [Hz]
FrequencyDerivative: 5.457554034750038e-19 [Hz^2]
EclipticLatitude: -0.09523736320285323 [Radian]
EclipticLongitude: 1.7390342498888491 [Radian]
Inclination: 1.1397000015522971 [Radian]
ErrorInclination: 5.1 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.09721832999458814 [Radian]
GalacticLongitude: 3.4197824283944214 [Radian]
Period: 2236.016 [seconds]
Mass1: 0.39 [SolarMass]
ErrorMass1: 0.1045 [SolarMass]
Mass2: 0.325 [SolarMass]
ErrorMass2: 0.0225 [SolarMass]
Distance: 1575.9 [pc]
ErrorDistance: 621.4 [pc]

Signal to Noise Ratio

snr_tot = 2.6346519724229998
snr_X = 1.7716462506756183
snr_Y = 1.8453369936790915
snr_Z = 1.9667115668775337

Parameter estimations with A,E,T

Source 37 : ZTFJ2320

Name: ZTFJ2320 []
Amplitude: 4.1249930686532385e-23 [strain]
Frequency: 0.0006033546882680517 [Hz]
FrequencyDerivative: 1.3040644376261507e-19 [Hz^2]
EclipticLatitude: 0.6648607231476503 [Radian]
EclipticLongitude: 0.1520737218409385 [Radian]
Inclination: 1.4748032179352084 [Radian]
ErrorInclination: 2.95 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.3771743780022346 [Radian]
GalacticLongitude: 1.8105225355440735 [Radian]
Period: 3314.7998 [seconds]
Mass1: 0.69 [SolarMass]
ErrorMass1: 0.03 [SolarMass]
Mass2: 0.2 [SolarMass]
ErrorMass2: 0.01 [SolarMass]
Distance: 1475.9 [pc]
ErrorDistance: 855.6 [pc]

Signal to Noise Ratio

snr_tot = 0.7545735039585261
snr_X = 0.439035658762051
snr_Y = 0.5378796056072198
snr_Z = 0.6099171672152196

Parameter estimations with A,E,T

Source 38 : SDSSJ1043

Name: SDSSJ1043 []
Amplitude: 2.4523357105048397e-23 [strain]
Frequency: 0.0007302254936324337 [Hz]
FrequencyDerivative: 2.5954929242576506e-19 [Hz^2]
EclipticLatitude: -0.03574473257424688 [Radian]
EclipticLongitude: 2.7951549877793527 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.9235200297417756 [Radian]
GalacticLongitude: 4.225494478955832 [Radian]
Period: 2738.88 [seconds]
Mass1: 0.183 [SolarMass]
ErrorMass1: 0.01 [SolarMass]
Mass2: 0.76 [SolarMass]
ErrorMass2: 0.25 [SolarMass]
Distance: 2787.2 [pc]
ErrorDistance: 1217.7 [pc]

Signal to Noise Ratio

snr_tot = 0.9903783206065522
snr_X = 0.6929559609523323
snr_Y = 0.7367561317335984
snr_Z = 0.6695247061676447

Parameter estimations with A,E,T

Source 39 : SDSSJ0822

Name: SDSSJ0822 []
Amplitude: 6.839362289845137e-23 [strain]
Frequency: 0.0008230207123450019 [Hz]
FrequencyDerivative: 4.813758822866145e-19 [Hz^2]
EclipticLatitude: 0.19367116737223558 [Radian]
EclipticLongitude: 2.106222182711012 [Radian]
Inclination: 1.530653753999027 [Radian]
ErrorInclination: 0.2 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.5584215848340898 [Radian]
GalacticLongitude: 3.3495817952207054 [Radian]
Period: 2430.0725 [seconds]
Mass1: 0.304 [SolarMass]
ErrorMass1: 0.014 [SolarMass]
Mass2: 0.524 [SolarMass]
ErrorMass2: 0.05 [SolarMass]
Distance: 1294.6 [pc]
ErrorDistance: 1172.9 [pc]

Signal to Noise Ratio

snr_tot = 2.1586397635647963
snr_X = 1.608488959997739
snr_Y = 1.3606947728551435
snr_Z = 1.5971156481227171

Parameter estimations with A,E,T

Source 40 : SDSSJ0106

Name: SDSSJ0106 []
Amplitude: 7.625591241373098e-23 [strain]
Frequency: 0.00085260214173658 [Hz]
FrequencyDerivative: 3.796032642280452e-19 [Hz^2]
EclipticLatitude: -0.27563548649672936 [Radian]
EclipticLongitude: 0.19991573504401022 [Radian]
Inclination: 1.1693705988362006 [Radian]
ErrorInclination: 13.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -1.2651211069298616 [Radian]
GalacticLongitude: 2.3688376552937918 [Radian]
Period: 2345.76 [seconds]
Mass1: 0.188 [SolarMass]
ErrorMass1: 0.011 [SolarMass]
Mass2: 0.57 [SolarMass]
ErrorMass2: 0.14500000000000002 [SolarMass]
Distance: 823.6 [pc]
ErrorDistance: 441.3 [pc]

Signal to Noise Ratio

snr_tot = 3.550986959895595
snr_X = 2.3954228285529524
snr_Y = 2.4589553891743643
snr_Z = 2.670117811247143

Parameter estimations with A,E,T

Source 41 : ZTFJ1905

Name: ZTFJ1905 []
Amplitude: 9.922726928245878e-23 [strain]
Frequency: 0.0019376758010867666 [Hz]
FrequencyDerivative: 4.905500781016209e-18 [Hz^2]
EclipticLatitude: 0.9368299108774644 [Radian]
EclipticLongitude: 5.127776589762577 [Radian]
Inclination: 1.2217304763960306 [Radian]
ErrorInclination: 20.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.194522181122524 [Radian]
GalacticLongitude: 1.0968905656593804 [Radian]
Period: 1032.16441 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.09 [SolarMass]
ErrorMass2: 0.035 [SolarMass]
Distance: 696.8 [pc]
ErrorDistance: 604.9 [pc]

Signal to Noise Ratio

snr_tot = 23.565255071872638
snr_X = 16.7795967784642
snr_Y = 14.457672859393243
snr_Z = 18.50117283017693

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 23.607684
s_P/P < 0.000000

Source 42 : WD0957

Name: WD0957 []
Amplitude: 2.549916258558486e-22 [strain]
Frequency: 0.0003795202663742355 [Hz]
FrequencyDerivative: 2.2252578138009597e-20 [Hz^2]
EclipticLatitude: -1.1746304769296143 [Radian]
EclipticLongitude: 3.6394196423563328 [Radian]
Inclination: 1.3089969389957472 [Radian]
ErrorInclination: 15.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.1651587617869714 [Radian]
GalacticLongitude: 5.011604736688094 [Radian]
Period: 5269.8108038 [seconds]
Mass1: 0.37 [SolarMass]
ErrorMass1: 0.02 [SolarMass]
Mass2: 0.32 [SolarMass]
ErrorMass2: 0.03 [SolarMass]
Distance: 163.7 [pc]
ErrorDistance: 0.8 [pc]

Signal to Noise Ratio

snr_tot = 2.0937047647928577
snr_X = 1.6064539142575345
snr_Y = 1.0598371608216053
snr_Z = 1.694529487971885

Parameter estimations with A,E,T

Source 43 : J1239m2041

Name: J1239m2041 []
Amplitude: 1.5875107961244988e-22 [strain]
Frequency: 0.0014810075590625815 [Hz]
FrequencyDerivative: 4.888274646074877e-18 [Hz^2]
EclipticLatitude: -0.2628915344494228 [Radian]
EclipticLongitude: 3.445486075395212 [Radian]
Inclination: 1.239183768915974 [Radian]
ErrorInclination: 9.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.734684131322249 [Radian]
GalacticLongitude: 5.22334284555229 [Radian]
Period: 1350.432 [seconds]
Mass1: 0.291 [SolarMass]
ErrorMass1: 0.013 [SolarMass]
Mass2: 0.68 [SolarMass]
ErrorMass2: 0.08499999999999999 [SolarMass]
Distance: 972.0 [pc]
ErrorDistance: 272.4 [pc]

Signal to Noise Ratio

snr_tot = 19.491394739274504
snr_X = 13.3816174414375
snr_Y = 13.167238815794782
snr_Z = 14.74463070911845

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 19.829365
s_P/P < 0.000001

Source 44 : J2322p2103

Name: J2322p2103 []
Amplitude: 1.0106240192378141e-22 [strain]
Frequency: 0.0010427093760427095 [Hz]
FrequencyDerivative: 1.2668252918556597e-18 [Hz^2]
EclipticLatitude: 0.4014962681098809 [Radian]
EclipticLongitude: 0.0023183410970025833 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.6489902103785794 [Radian]
GalacticLongitude: 1.6845062728915792 [Radian]
Period: 1918.08 [seconds]
Mass1: 0.25 [SolarMass]
ErrorMass1: 0.021 [SolarMass]
Mass2: 0.75 [SolarMass]
ErrorMass2: 0.26 [SolarMass]
Distance: 1133.8 [pc]
ErrorDistance: 386.2 [pc]

Signal to Noise Ratio

snr_tot = 8.184399605424032
snr_X = 5.463376932648647
snr_Y = 5.943889198680372
snr_Z = 5.941076184268752

Parameter estimations with A,E,T

Input parameters


- log : log/SO1_detectability_vgb_4.5_yr.log
- config : config.yml
- subconfig :
- duration : 4.5 yr
- duty_cycle : 0.82
- armlength : 2500000000.0 m
- noise : SciRDv1_redbook/noise_background_4.5_yr.npy
- show : False
- fast : 0
- tdi2 : 1
- freqs : [2e-05, 1]
- force_duration : 4.5_yr
- source : SO1/data/Params_VGBind_v3.hdf5
- timestep : 5
- report : SciRDv1_redbook/report_SO1a_detectability_vgb_4.5_yr.md
- fom_title : Detectability of verification binaries and measurement of the their frequency evolution
- fom_config : SO1/detectability_vgb.4.5_yr.yml
- fom_type : number
- snr : 0
- fom_snr : 7
- fom_sky_acc : 0
- fom_mc_rel_acc : 0
- fom_frequency_derivative : 1e-06
- fom_frequency_range : None
- frequency_range : None
- source_type :
- fom_source_type : verification
- fom_range : [8, 12, 15]
- random_seed : 5896
- nproc : 24

Download

SNR data

Parameter estimation data

dPoP data

Keys	Action
`?`	Open this help
`n`	Next page
`p`	Previous page
`s`	Search
