report SO1a detectability vgb 1.5 yr.md

Detectability of verification binaries and measurement of the their frequency evolution [1.5 yr]

FoM

Science investigation and Observational requirement: SI1.2 OR1.2a from Science requirement document.

- OK 8 [2 6 10] : OR 1.2.a verification binaries

Detectability of verification binaries and measurement of the their frequency evolution FoM: number of selected sources. The source is selected if

SNR > 7
s_P/P < 1e-06

Summary

Conducting monte-carlo over 1000 trials, randomizing polarization and initial phase

Name	SNR total	sigma_P / P	selected
HMCnc	54.338720	1.98069e-07	True
V407Vul	60.743207	3.11841e-07	True
ESCet	54.561088	2.92889e-07	True
SDSSJ1351	9.067178	2.43756e-06	False
AMCVn	45.679046	5.69573e-07	True
SDSSJ1908	12.927142	2.62723e-06	False
HPLib	25.783761	1.06295e-06	False
PTF1919	2.358686	1.76221e-05	False
CX1751	2.598601	1.46118e-05	False
CRBoo	12.752984	2.81362e-06	False
V803Cen	17.580476	2.71452e-06	False
SDSSJ0651	24.127537	9.3998e-07	True
SDSSJ0935	41.654322	7.74607e-07	True
SDSSJ1630	3.879499	1.6745e-05	False
SDSSJ0923	3.370347	2.65869e-05	False
CDm30	2.681560	3.7863e-05	False
ZTFJ1539	47.091490	2.49176e-07	True
ZTFJ0538	20.175079	1.1558e-06	False
PTFJ0533	6.022346	6.38171e-06	False
ZTFJ2029	4.876664	9.28119e-06	False
ZTFJ1749	1.688908	2.9007e-05	False
ZTFJ2243	54.166195	3.67257e-07	True
SDSSJ2322	6.596252	4.6809e-06	False
4U1820-30	4.941171	4.26352e-06	False
SDSSJ1235	3.725496	1.76914e-05	False
ZTFJ0722	3.367581	1.43342e-05	False
KLDra	2.001964	2.26341e-05	False
PTF0719	1.859158	2.69821e-05	False
CP Eri	1.858730	2.57109e-05	False
ZTFJ2130	1.362677	6.12089e-05	False
ZTFJ1901	1.383272	5.04253e-05	False
HD265435	1.672218	9.6966e-05	False
SMSSJ0338	3.711310	1.61603e-05	False
SDSSJ0634	13.465598	3.52477e-06	False
SDSSJ1337	4.006966	3.53447e-05	False
ZTFJ1946	0.755815	8.80199e-05	False
ZTFJ0640	1.555479	3.93225e-05	False
ZTFJ2320	0.426341	0.000234459	False
SDSSJ1043	0.566350	0.000115242	False
SDSSJ0822	1.178541	5.43305e-05	False
SDSSJ0106	1.965826	2.74588e-05	False
ZTFJ1905	10.714931	3.08451e-06	False
WD0957	1.181262	0.000134281	False
J1239m2041	9.903185	3.4505e-06	False
J2322p2103	4.040832	1.3342e-05	False

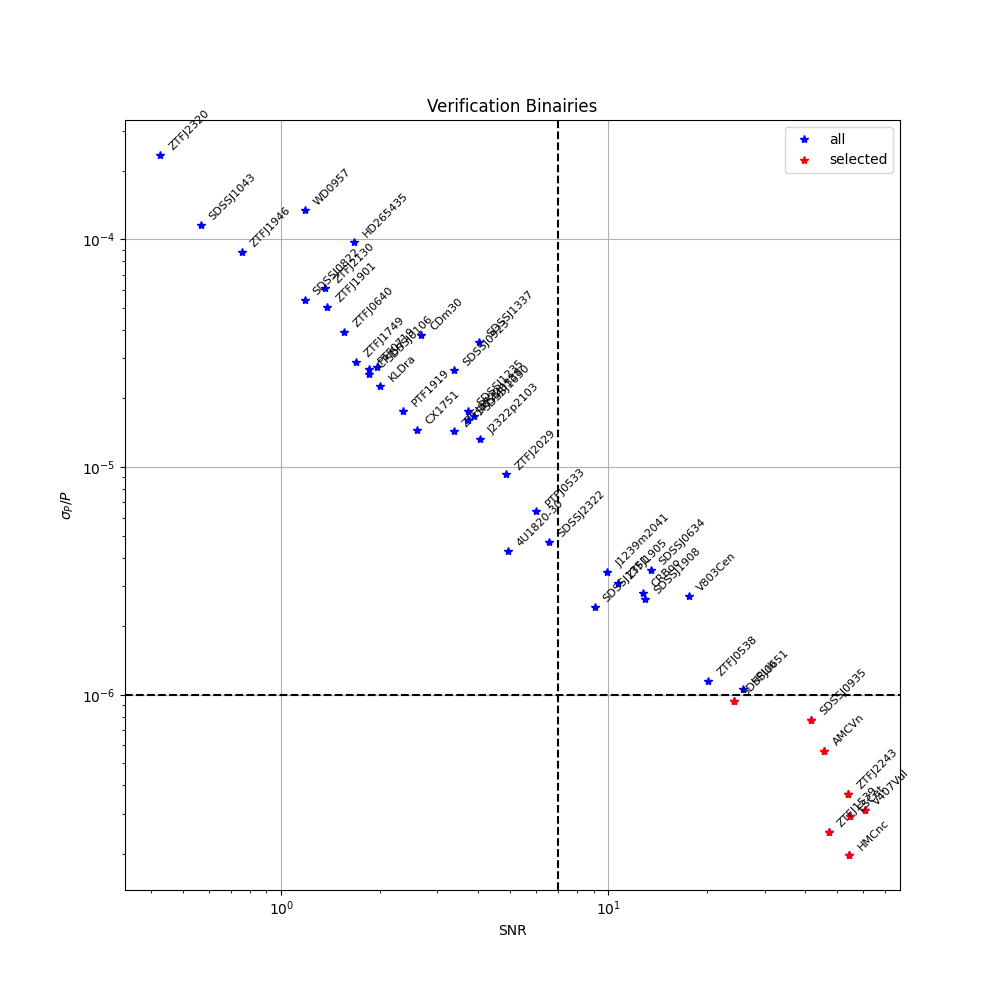

Plot relative error on period as a function of SNR

Detailed results

Source 0 : HMCnc

Name: HMCnc []
Amplitude: 4.252225600012621e-23 [strain]
Frequency: 0.00622027623506547 [Hz]
FrequencyDerivative: 7.48526873173375e-16 [Hz^2]
EclipticLatitude: -0.08209991730272174 [Radian]
EclipticLongitude: 2.1020513457075882 [Radian]
Inclination: 0.6632251157578452 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.40832326916257733 [Radian]
GalacticLongitude: 3.6115155733722584 [Radian]
Period: 321.529129 [seconds]
Mass1: 0.55 [SolarMass]
ErrorMass1: 0.0 [SolarMass]
Mass2: 0.27 [SolarMass]
ErrorMass2: 0.0 [SolarMass]
Distance: 7500.0 [pc]
ErrorDistance: 2500.0 [pc]

Signal to Noise Ratio

snr_tot = 54.28154191515975
snr_X = 38.70961470243112
snr_Y = 36.353839264418355
snr_Z = 39.092367006138176

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 54.338720
s_P/P < 0.000000

Source 1 : V407Vul

Name: V407Vul []
Amplitude: 9.381080043639149e-23 [strain]
Frequency: 0.0035124925221229515 [Hz]
FrequencyDerivative: 8.282059138166233e-17 [Hz^2]
EclipticLatitude: 0.8165220844186913 [Radian]
EclipticLongitude: 5.1485583542879 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.11171154410314905 [Radian]
GalacticLongitude: 1.0075454159205384 [Radian]
Period: 569.39623 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.177 [SolarMass]
ErrorMass2: 0.071 [SolarMass]
Distance: 2089.0 [pc]
ErrorDistance: 684.0 [pc]

Signal to Noise Ratio

snr_tot = 60.68926750791837
snr_X = 43.172975371407375
snr_Y = 40.420985812968624
snr_Z = 44.8486476501811

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 60.743207
s_P/P < 0.000000

Source 2 : ESCet

Name: ESCet []
Amplitude: 9.517180373037876e-23 [strain]
Frequency: 0.0032247077104776804 [Hz]
FrequencyDerivative: 5.5367655902272526e-17 [Hz^2]
EclipticLatitude: -0.3548927927646196 [Radian]
EclipticLongitude: 0.42949142003443425 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -1.1495296958995294 [Radian]
GalacticLongitude: 2.949054911826787 [Radian]
Period: 620.21125 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.161 [SolarMass]
ErrorMass2: 0.064 [SolarMass]
Distance: 1779.0 [pc]
ErrorDistance: 234.0 [pc]

Signal to Noise Ratio

snr_tot = 54.18414161330253
snr_X = 38.59044833575581
snr_Y = 36.32570217110932
snr_Z = 39.829156445392194

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 54.561088
s_P/P < 0.000000

Source 3 : SDSSJ1351

Name: SDSSJ1351 []
Amplitude: 5.328151919216593e-23 [strain]
Frequency: 0.002129925452609159 [Hz]
FrequencyDerivative: 7.681783462488883e-18 [Hz^2]
EclipticLatitude: 0.07805308612247897 [Radian]
EclipticLongitude: 3.636986034854161 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.9271887118294676 [Radian]
GalacticLongitude: 5.733443244715664 [Radian]
Period: 939.0 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.1 [SolarMass]
ErrorMass2: 0.04 [SolarMass]
Distance: 1530.0 [pc]
ErrorDistance: 755.0 [pc]

Signal to Noise Ratio

snr_tot = 8.990095989102587
snr_X = 6.4945057935811485
snr_Y = 5.999483770791258
snr_Z = 6.560906929978272

Parameter estimations with A,E,T

Source 4 : AMCVn

Name: AMCVn []
Amplitude: 2.8010083778078857e-22 [strain]
Frequency: 0.0019441405644734365 [Hz]
FrequencyDerivative: 6.061849604020092e-18 [Hz^2]
EclipticLatitude: 0.6534962655570156 [Radian]
EclipticLongitude: 2.9737231526595265 [Radian]
Inclination: 0.7504915783575616 [Radian]
ErrorInclination: 2.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 1.3777314955977877 [Radian]
GalacticLongitude: 2.4475502592294838 [Radian]
Period: 1028.7322 [seconds]
Mass1: 0.68 [SolarMass]
ErrorMass1: 0.06 [SolarMass]
Mass2: 0.125 [SolarMass]
ErrorMass2: 0.012 [SolarMass]
Distance: 302.0 [pc]
ErrorDistance: 3.0 [pc]

Signal to Noise Ratio

snr_tot = 45.64435948731411
snr_X = 31.77662095208004
snr_Y = 33.22329236998738
snr_Z = 31.801640198785503

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 45.679046
s_P/P < 0.000001

Source 5 : SDSSJ1908

Name: SDSSJ1908 []
Amplitude: 6.476701617700626e-23 [strain]
Frequency: 0.0018431345082701447 [Hz]
FrequencyDerivative: 3.863850949839444e-18 [Hz^2]
EclipticLatitude: 1.0725775888476425 [Radian]
EclipticLongitude: 5.204803793379396 [Radian]
Inclination: 0.2617993877991494 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.24320988593615786 [Radian]
GalacticLongitude: 1.2333613505313208 [Radian]
Period: 1085.108 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.085 [SolarMass]
ErrorMass2: 0.034 [SolarMass]
Distance: 977.0 [pc]
ErrorDistance: 32.0 [pc]

Signal to Noise Ratio

snr_tot = 12.927137906283892
snr_X = 9.11859969894234
snr_Y = 9.148989044189062
snr_Z = 9.154109293852077

Parameter estimations with A,E,T

Source 6 : HPLib

Name: HPLib []
Amplitude: 1.549809947147088e-22 [strain]
Frequency: 0.0018137299356125872 [Hz]
FrequencyDerivative: 2.5249638188534677e-18 [Hz^2]
EclipticLatitude: 0.08656626037851765 [Radian]
EclipticLongitude: 4.102997781403207 [Radian]
Inclination: 0.5235987755982988 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.5680470756588385 [Radian]
GalacticLongitude: 6.144538096730409 [Radian]
Period: 1102.7 [seconds]
Mass1: 0.645 [SolarMass]
ErrorMass1: 0.15500000000000003 [SolarMass]
Mass2: 0.068 [SolarMass]
ErrorMass2: 0.019999999999999997 [SolarMass]
Distance: 280.0 [pc]
ErrorDistance: 3.0 [pc]

Signal to Noise Ratio

snr_tot = 25.773837197749963
snr_X = 18.801299377590468
snr_Y = 18.350999662706382
snr_Z = 17.496799537659637

Parameter estimations with A,E,T

Source 7 : PTF1919

Name: PTF1919 []
Amplitude: 3.1401614410063875e-23 [strain]
Frequency: 0.001484390887621219 [Hz]
FrequencyDerivative: 1.366433230495363e-18 [Hz^2]
EclipticLatitude: 1.20478453060435 [Radian]
EclipticLongitude: 5.393038804872241 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.2722312207383195 [Radian]
GalacticLongitude: 1.3891860914786265 [Radian]
Period: 1347.354 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.066 [SolarMass]
ErrorMass2: 0.026 [SolarMass]
Distance: 1364.24 [pc]
ErrorDistance: 471.774 [pc]

Signal to Noise Ratio

snr_tot = 2.357396869901583
snr_X = 1.7902502456607294
snr_Y = 1.5295717067188612
snr_Z = 1.6706644624611258

Parameter estimations with A,E,T

Source 8 : CX1751

Name: CX1751 []
Amplitude: 3.637762985689425e-23 [strain]
Frequency: 0.001455604075691412 [Hz]
FrequencyDerivative: 1.2341675089779478e-18 [Hz^2]
EclipticLatitude: -0.10913135555544068 [Radian]
EclipticLongitude: 4.678487037000467 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.024623105087136003 [Radian]
GalacticLongitude: 6.282921762462535 [Radian]
Period: 1374.0 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.064 [SolarMass]
ErrorMass2: 0.026 [SolarMass]
Distance: 1128.0 [pc]
ErrorDistance: 258.0 [pc]

Signal to Noise Ratio

snr_tot = 2.57373315639355
snr_X = 1.6946423493087321
snr_Y = 1.8921381431795234
snr_Z = 1.8665141812968042

Parameter estimations with A,E,T

Source 9 : CRBoo

Name: CRBoo []
Amplitude: 1.2341101754286283e-22 [strain]
Frequency: 0.001359336904583249 [Hz]
FrequencyDerivative: 1.0610679420885857e-18 [Hz^2]
EclipticLatitude: 0.3123640022949429 [Radian]
EclipticLongitude: 3.5302612147438115 [Radian]
Inclination: 0.5235987755982988 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 1.1604414943829977 [Radian]
GalacticLongitude: 5.950998535976757 [Radian]
Period: 1471.3056 [seconds]
Mass1: 0.885 [SolarMass]
ErrorMass1: 0.21500000000000002 [SolarMass]
Mass2: 0.066 [SolarMass]
ErrorMass2: 0.022 [SolarMass]
Distance: 351.0 [pc]
ErrorDistance: 5.0 [pc]

Signal to Noise Ratio

snr_tot = 12.74869443529714
snr_X = 8.930455059008631
snr_Y = 8.784476614966469
snr_Z = 9.320286135139808

Parameter estimations with A,E,T

Source 10 : V803Cen

Name: V803Cen []
Amplitude: 1.9336512427656877e-22 [strain]
Frequency: 0.0012528188423953895 [Hz]
FrequencyDerivative: 1.0642059768279332e-18 [Hz^2]
EclipticLatitude: -0.5291276111568994 [Radian]
EclipticLongitude: 3.772765199391373 [Radian]
Inclination: 0.23561944901923448 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.3617404314268487 [Radian]
GalacticLongitude: 5.39947449234655 [Radian]
Period: 1596.4 [seconds]
Mass1: 0.975 [SolarMass]
ErrorMass1: 0.19499999999999995 [SolarMass]
Mass2: 0.08399999999999999 [SolarMass]
ErrorMass2: 0.025 [SolarMass]
Distance: 287.0 [pc]
ErrorDistance: 5.0 [pc]

Signal to Noise Ratio

snr_tot = 17.58030881897984
snr_X = 12.900320807413397
snr_Y = 12.093132621830614
snr_Z = 12.285325161925819

Parameter estimations with A,E,T

Source 11 : SDSSJ0651

Name: SDSSJ0651 []
Amplitude: 1.5772063588131273e-22 [strain]
Frequency: 0.0026136734170606798 [Hz]
FrequencyDerivative: 2.6309270824483166e-17 [Hz^2]
EclipticLatitude: 0.10134025796313308 [Radian]
EclipticLongitude: 1.768608725711838 [Radian]
Inclination: 1.5166911199830724 [Radian]
ErrorInclination: 1.3 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.2214578474685525 [Radian]
GalacticLongitude: 3.2625038281802046 [Radian]
Period: 765.206543 [seconds]
Mass1: 0.247 [SolarMass]
ErrorMass1: 0.0125 [SolarMass]
Mass2: 0.49 [SolarMass]
ErrorMass2: 0.02 [SolarMass]
Distance: 958.0 [pc]
ErrorDistance: 370.0 [pc]

Signal to Noise Ratio

snr_tot = 23.10540107024908
snr_X = 15.078537393815495
snr_Y = 15.932410686899495
snr_Z = 17.870294022743597

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 24.127537
s_P/P < 0.000001

Source 12 : SDSSJ0935

Name: SDSSJ0935 []
Amplitude: 4.883549229993149e-22 [strain]
Frequency: 0.0016835016835016834 [Hz]
FrequencyDerivative: 8.975820347190449e-18 [Hz^2]
EclipticLatitude: 0.4903299359122858 [Radian]
EclipticLongitude: 2.2859340714367815 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.8268951116928656 [Radian]
GalacticLongitude: 3.0731687655946076 [Radian]
Period: 1188.0 [seconds]
Mass1: 0.312 [SolarMass]
ErrorMass1: 0.019 [SolarMass]
Mass2: 0.75 [SolarMass]
ErrorMass2: 0.24 [SolarMass]
Distance: 395.0 [pc]
ErrorDistance: 203.0 [pc]

Signal to Noise Ratio

snr_tot = 41.38010047950228
snr_X = 30.786523704148074
snr_Y = 27.850251426772644
snr_Z = 29.067517817909373

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 41.654322
s_P/P < 0.000001

Source 13 : SDSSJ1630

Name: SDSSJ1630 []
Amplitude: 1.3840501951284948e-22 [strain]
Frequency: 0.0008375209380234506 [Hz]
FrequencyDerivative: 6.724121209995266e-19 [Hz^2]
EclipticLatitude: 1.100477233978783 [Radian]
EclipticLongitude: 4.0451772827046675 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.7567817449817492 [Radian]
GalacticLongitude: 1.1706970490677162 [Radian]
Period: 2388.0 [seconds]
Mass1: 0.298 [SolarMass]
ErrorMass1: 0.019 [SolarMass]
Mass2: 0.76 [SolarMass]
ErrorMass2: 0.24 [SolarMass]
Distance: 848.0 [pc]
ErrorDistance: 167.0 [pc]

Signal to Noise Ratio

snr_tot = 3.8773564039300763
snr_X = 2.9165908553506696
snr_Y = 2.762253312364456
snr_Z = 2.5325989907320077

Parameter estimations with A,E,T

Source 14 : SDSSJ0923

Name: SDSSJ0923 []
Amplitude: 2.7393487754035697e-22 [strain]
Frequency: 0.0005149754871668109 [Hz]
FrequencyDerivative: 1.0507522054190313e-19 [Hz^2]
EclipticLatitude: 0.2518301682983234 [Radian]
EclipticLongitude: 2.3336859882255654 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.781478153897469 [Radian]
GalacticLongitude: 3.417701995926044 [Radian]
Period: 3883.68 [seconds]
Mass1: 0.275 [SolarMass]
ErrorMass1: 0.0115 [SolarMass]
Mass2: 0.76 [SolarMass]
ErrorMass2: 0.23 [SolarMass]
Distance: 288.0 [pc]
ErrorDistance: 5.0 [pc]

Signal to Noise Ratio

snr_tot = 3.341746933281236
snr_X = 2.4923024771377493
snr_Y = 2.2723187580175566
snr_Z = 2.3185811303512045

Parameter estimations with A,E,T

Source 15 : CDm30

Name: CDm30 []
Amplitude: 3.940291572857928e-22 [strain]
Frequency: 0.0004726130368715878 [Hz]
FrequencyDerivative: 1.440040231925979e-19 [Hz^2]
EclipticLatitude: -0.28998646739508915 [Radian]
EclipticLongitude: 3.860224001878778 [Radian]
Inclination: 1.4468779499032993 [Radian]
ErrorInclination: 0.04 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.505061633612867 [Radian]
GalacticLongitude: 5.628468671525213 [Radian]
Period: 4231.791855 [seconds]
Mass1: 0.54 [SolarMass]
ErrorMass1: 0.02 [SolarMass]
Mass2: 0.79 [SolarMass]
ErrorMass2: 0.01 [SolarMass]
Distance: 355.0 [pc]
ErrorDistance: 7.0 [pc]

Signal to Noise Ratio

snr_tot = 2.5927803890815575
snr_X = 1.9749405264687419
snr_Y = 1.6975594664034184
snr_Z = 1.8170366483915403

Parameter estimations with A,E,T

Source 16 : ZTFJ1539

Name: ZTFJ1539 []
Amplitude: 9.402415441563617e-23 [strain]
Frequency: 0.004821699107149872 [Hz]
FrequencyDerivative: 2.53782494976533e-16 [Hz^2]
EclipticLatitude: 1.1547376242549767 [Radian]
EclipticLongitude: 3.5784065568008283 [Radian]
Inclination: 1.4686945655532282 [Radian]
ErrorInclination: 0.605 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.8828206969145198 [Radian]
GalacticLongitude: 1.4097827219814119 [Radian]
Period: 414.7915404 [seconds]
Mass1: 0.61 [SolarMass]
ErrorMass1: 0.0195 [SolarMass]
Mass2: 0.21 [SolarMass]
ErrorMass2: 0.015 [SolarMass]
Distance: 2469.0 [pc]
ErrorDistance: 1253.0 [pc]

Signal to Noise Ratio

snr_tot = 46.83364664604554
snr_X = 36.84695876112341
snr_Y = 17.266611579349608
snr_Z = 40.06517431974588

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 47.091490
s_P/P < 0.000000

Source 17 : ZTFJ0538

Name: ZTFJ0538 []
Amplitude: 1.632259258978156e-22 [strain]
Frequency: 0.002307861021209347 [Hz]
FrequencyDerivative: 1.9547193237011714e-17 [Hz^2]
EclipticLatitude: -0.06033123991104798 [Radian]
EclipticLongitude: 1.4804953705328108 [Radian]
Inclination: 1.4910347799787558 [Radian]
ErrorInclination: 0.08 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.10858216875432322 [Radian]
GalacticLongitude: 3.2604565569676147 [Radian]
Period: 866.60331 [seconds]
Mass1: 0.45 [SolarMass]
ErrorMass1: 0.05 [SolarMass]
Mass2: 0.32 [SolarMass]
ErrorMass2: 0.03 [SolarMass]
Distance: 999.0 [pc]
ErrorDistance: 366.0 [pc]

Signal to Noise Ratio

snr_tot = 19.449926372822024
snr_X = 12.43392169578975
snr_Y = 14.757717166770773
snr_Z = 13.962955527237536

Parameter estimations with A,E,T

Source 18 : PTFJ0533

Name: PTFJ0533 []
Amplitude: 8.135862404040586e-23 [strain]
Frequency: 0.0016207810320125486 [Hz]
FrequencyDerivative: 3.962556470469602e-18 [Hz^2]
EclipticLatitude: -0.3686727481892306 [Radian]
EclipticLongitude: 1.4469784718731191 [Radian]
Inclination: 1.270599695451872 [Radian]
ErrorInclination: 1.1 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.283158727185056 [Radian]
GalacticLongitude: 3.5220953744755805 [Radian]
Period: 1233.97298 [seconds]
Mass1: 0.652 [SolarMass]
ErrorMass1: 0.0385 [SolarMass]
Mass2: 0.167 [SolarMass]
ErrorMass2: 0.03 [SolarMass]
Distance: 1173.0 [pc]
ErrorDistance: 390.0 [pc]

Signal to Noise Ratio

snr_tot = 5.955435232843214
snr_X = 3.916075063649319
snr_Y = 4.48469583247128
snr_Z = 4.213146356390008

Parameter estimations with A,E,T

Source 19 : ZTFJ2029

Name: ZTFJ2029 []
Amplitude: 8.349873073226483e-23 [strain]
Frequency: 0.0015973720048555093 [Hz]
FrequencyDerivative: 3.6342351136523925e-18 [Hz^2]
EclipticLatitude: 0.5835320581999007 [Radian]
EclipticLongitude: 5.487960070233999 [Radian]
Inclination: 1.512153263927887 [Radian]
ErrorInclination: 0.55 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.23501731042729646 [Radian]
GalacticLongitude: 1.02247670767135 [Radian]
Period: 1252.056499 [seconds]
Mass1: 0.32 [SolarMass]
ErrorMass1: 0.04 [SolarMass]
Mass2: 0.3 [SolarMass]
ErrorMass2: 0.04 [SolarMass]
Distance: 1095.0 [pc]
ErrorDistance: 644.0 [pc]

Signal to Noise Ratio

snr_tot = 4.789974835031419
snr_X = 3.9899332542515915
snr_Y = 2.9183376756369492
snr_Z = 3.158832478646925

Parameter estimations with A,E,T

Source 20 : ZTFJ1749

Name: ZTFJ1749 []
Amplitude: 4.3266684129295276e-23 [strain]
Frequency: 0.0012610071024396585 [Hz]
FrequencyDerivative: 1.7276778667358457e-18 [Hz^2]
EclipticLatitude: 0.5728592035594019 [Radian]
EclipticLongitude: 4.660689189243602 [Radian]
Inclination: 1.4913838458291546 [Radian]
ErrorInclination: 1.275 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.31245756933828484 [Radian]
GalacticLongitude: 0.6023009075584792 [Radian]
Period: 1586.03389 [seconds]
Mass1: 0.4 [SolarMass]
ErrorMass1: 0.060000000000000005 [SolarMass]
Mass2: 0.28 [SolarMass]
ErrorMass2: 0.045 [SolarMass]
Distance: 2042.0 [pc]
ErrorDistance: 1244.0 [pc]

Signal to Noise Ratio

snr_tot = 1.6743318860112912
snr_X = 0.9714665405294269
snr_Y = 1.309296713406568
snr_Z = 1.2437793509390933

Parameter estimations with A,E,T

Source 21 : ZTFJ2243

Name: ZTFJ2243 []
Amplitude: 1.2224933711850275e-22 [strain]
Frequency: 0.0037883459454630852 [Hz]
FrequencyDerivative: 1.1382056543823663e-16 [Hz^2]
EclipticLatitude: 0.9417777352960822 [Radian]
EclipticLongitude: 0.231053952286183 [Radian]
Inclination: 1.4290755915329567 [Radian]
ErrorInclination: 1.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.09511346291668299 [Radian]
GalacticLongitude: 1.8177848505616219 [Radian]
Period: 527.93489 [seconds]
Mass1: 0.349 [SolarMass]
ErrorMass1: 0.08349999999999999 [SolarMass]
Mass2: 0.384 [SolarMass]
ErrorMass2: 0.094 [SolarMass]
Distance: 1756.0 [pc]
ErrorDistance: 726.0 [pc]

Signal to Noise Ratio

snr_tot = 54.066276223493304
snr_X = 29.303540693286713
snr_Y = 36.941365996382444
snr_Z = 46.280883757686894

Parameter estimations with A,E,T

Selection for the figure of merit

SNR > 54.166195
s_P/P < 0.000000

Source 22 : SDSSJ2322

Name: SDSSJ2322 []
Amplitude: 7.030541969534868e-23 [strain]
Frequency: 0.0016647244880972198 [Hz]
FrequencyDerivative: 2.7171267235059494e-18 [Hz^2]
EclipticLatitude: 0.14760628961836086 [Radian]
EclipticLongitude: 6.168576488687758 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.8937900912633042 [Radian]
GalacticLongitude: 1.50012270939389 [Radian]
Period: 1201.4 [seconds]
Mass1: 0.34 [SolarMass]
ErrorMass1: 0.02 [SolarMass]
Mass2: 0.17 [SolarMass]
ErrorMass2: 0.0 [SolarMass]
Distance: 859.0 [pc]
ErrorDistance: 206.0 [pc]

Signal to Noise Ratio

snr_tot = 6.54029111501481
snr_X = 4.389466487654096
snr_Y = 4.834526910617578
snr_Z = 4.639014070188405

Parameter estimations with A,E,T

Source 23 : 4U1820-30

Name: 4U1820-30 []
Amplitude: 1.3574749648216346e-23 [strain]
Frequency: 0.00291970802919708 [Hz]
FrequencyDerivative: 2.5041740708844685e-17 [Hz^2]
EclipticLatitude: -0.1226394067522336 [Radian]
EclipticLongitude: 4.802117534039483 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.1381323383198392 [Radian]
GalacticLongitude: 0.04868770481363382 [Radian]
Period: 685.0 [seconds]
Mass1: 1.4 [SolarMass]
ErrorMass1: 0.0 [SolarMass]
Mass2: 0.069 [SolarMass]
ErrorMass2: 0.0 [SolarMass]
Distance: 7600.0 [pc]
ErrorDistance: 0.0 [pc]

Signal to Noise Ratio

snr_tot = 4.893202792109593
snr_X = 3.2185827869333083
snr_Y = 3.5083572650400865
snr_Z = 3.635945024724529

Parameter estimations with A,E,T

Source 24 : SDSSJ1235

Name: SDSSJ1235 []
Amplitude: 1.1344601656239726e-22 [strain]
Frequency: 0.0006733027384568979 [Hz]
FrequencyDerivative: 1.5061078531032115e-19 [Hz^2]
EclipticLatitude: 0.3133292723651548 [Radian]
EclipticLongitude: 3.1727790347465317 [Radian]
Inclination: 0.47123889803846897 [Radian]
ErrorInclination: 3.8 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 1.3619153219162152 [Radian]
GalacticLongitude: 4.965786353164739 [Radian]
Period: 2970.432 [seconds]
Mass1: 0.35 [SolarMass]
ErrorMass1: 0.01 [SolarMass]
Mass2: 0.27 [SolarMass]
ErrorMass2: 0.04 [SolarMass]
Distance: 446.0 [pc]
ErrorDistance: 28.0 [pc]

Signal to Noise Ratio

snr_tot = 3.7246791138985893
snr_X = 2.5301878376444153
snr_Y = 2.6932397738451415
snr_Z = 2.6747508664312742

Parameter estimations with A,E,T

Source 25 : ZTFJ0722

Name: ZTFJ0722 []
Amplitude: 7.176054456355187e-23 [strain]
Frequency: 0.0014059273072807481 [Hz]
FrequencyDerivative: 2.841354105434733e-18 [Hz^2]
EclipticLatitude: -0.7027587558682672 [Radian]
EclipticLongitude: 2.0225957764691134 [Radian]
Inclination: 1.5648622073381158 [Radian]
ErrorInclination: 0.22 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.03247010540410251 [Radian]
GalacticLongitude: 4.0664949840991484 [Radian]
Period: 1422.548655 [seconds]
Mass1: 0.38 [SolarMass]
ErrorMass1: 0.04 [SolarMass]
Mass2: 0.33 [SolarMass]
ErrorMass2: 0.03 [SolarMass]
Distance: 1461.0 [pc]
ErrorDistance: 785.0 [pc]

Signal to Noise Ratio

snr_tot = 3.34161566620333
snr_X = 2.4506254823471605
snr_Y = 1.7908854837539143
snr_Z = 2.745230164699489

Parameter estimations with A,E,T

Source 26 : KLDra

Name: KLDra []
Amplitude: 3.5852403170094165e-23 [strain]
Frequency: 0.001331729930497015 [Hz]
FrequencyDerivative: 7.678159257485725e-19 [Hz^2]
EclipticLatitude: 1.3669711490874294 [Radian]
EclipticLongitude: 5.831653659768095 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.3350892537488953 [Radian]
GalacticLongitude: 1.588490474751615 [Radian]
Period: 1501.806 [seconds]
Mass1: 0.76 [SolarMass]
ErrorMass1: 0.0 [SolarMass]
Mass2: 0.057 [SolarMass]
ErrorMass2: 0.0 [SolarMass]
Distance: 929.8 [pc]
ErrorDistance: 91.1 [pc]

Signal to Noise Ratio

snr_tot = 2.0006121713019276
snr_X = 1.4595793003841724
snr_Y = 1.504600400184435
snr_Z = 1.2685974163375435

Parameter estimations with A,E,T

Source 27 : PTF0719

Name: PTF0719 []
Amplitude: 3.661492297718764e-23 [strain]
Frequency: 0.0012451749470800647 [Hz]
FrequencyDerivative: 5.78998780700755e-19 [Hz^2]
EclipticLatitude: 0.46288428903477835 [Radian]
EclipticLongitude: 1.821851692332016 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.427509673629751 [Radian]
GalacticLongitude: 2.943621701865329 [Radian]
Period: 1606.2 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.053 [SolarMass]
ErrorMass2: 0.021 [SolarMass]
Distance: 839.9 [pc]
ErrorDistance: 201.6 [pc]

Signal to Noise Ratio

snr_tot = 1.8425821054690144
snr_X = 1.241150706089651
snr_Y = 1.2673347492822271
snr_Z = 1.3949798218673335

Parameter estimations with A,E,T

Source 28 : CP Eri

Name: CP Eri []
Amplitude: 3.6165138587851763e-23 [strain]
Frequency: 0.0011494252873563218 [Hz]
FrequencyDerivative: 3.9981861335686013e-19 [Hz^2]
EclipticLatitude: -0.4612490272349958 [Radian]
EclipticLongitude: 0.7352875012661351 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.9234502165716957 [Radian]
GalacticLongitude: 3.3458328279874214 [Radian]
Period: 1740.0 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.049 [SolarMass]
ErrorMass2: 0.02 [SolarMass]
Distance: 746.5 [pc]
ErrorDistance: 202.9 [pc]

Signal to Noise Ratio

snr_tot = 1.8489159619672526
snr_X = 1.372034890362801
snr_Y = 1.2584193379206934
snr_Z = 1.2890096820289376

Parameter estimations with A,E,T

Source 29 : ZTFJ2130

Name: ZTFJ2130 []
Amplitude: 7.796022013910842e-23 [strain]
Frequency: 0.0008473117889624252 [Hz]
FrequencyDerivative: 6.046149555403453e-19 [Hz^2]
EclipticLatitude: 0.9502321548033213 [Radian]
EclipticLongitude: 6.076617266302188 [Radian]
Inclination: 1.5079644737231006 [Radian]
ErrorInclination: 1.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.08944637883545739 [Radian]
GalacticLongitude: 1.5619911407185851 [Radian]
Period: 2360.4062 [seconds]
Mass1: 0.545 [SolarMass]
ErrorMass1: 0.02 [SolarMass]
Mass2: 0.337 [SolarMass]
ErrorMass2: 0.015 [SolarMass]
Distance: 1307.3 [pc]
ErrorDistance: 41.8 [pc]

Signal to Noise Ratio

snr_tot = 1.3522041675492638
snr_X = 0.8066823968333944
snr_Y = 1.2154584255413483
snr_Z = 0.783951474812231

Parameter estimations with A,E,T

Source 30 : ZTFJ1901

Name: ZTFJ1901 []
Amplitude: 8.29173098474444e-23 [strain]
Frequency: 0.00082098160690459 [Hz]
FrequencyDerivative: 4.0659949455221405e-19 [Hz^2]
EclipticLatitude: 1.3025990031641006 [Radian]
EclipticLongitude: 5.354831660381907 [Radian]
Inclination: 1.5233233711406509 [Radian]
ErrorInclination: 0.5 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.34869933125594704 [Radian]
GalacticLongitude: 1.4544474428691985 [Radian]
Period: 2436.10817 [seconds]
Mass1: 0.36 [SolarMass]
ErrorMass1: 0.04 [SolarMass]
Mass2: 0.36 [SolarMass]
ErrorMass2: 0.05 [SolarMass]
Distance: 908.7 [pc]
ErrorDistance: 78.0 [pc]

Signal to Noise Ratio

snr_tot = 1.3811700996123353
snr_X = 1.2743263471839386
snr_Y = 0.4185114854496832
snr_Z = 1.0307065692403898

Parameter estimations with A,E,T

Source 31 : HD265435

Name: HD265435 []
Amplitude: 3.36366428613472e-22 [strain]
Frequency: 0.0003363652494123635 [Hz]
FrequencyDerivative: 5.75623060599934e-20 [Hz^2]
EclipticLatitude: 0.17705111416124933 [Radian]
EclipticLongitude: 1.7686261251746653 [Radian]
Inclination: 1.117010721276371 [Radian]
ErrorInclination: 9.5 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.2579980606883058 [Radian]
GalacticLongitude: 3.1942370198176984 [Radian]
Period: 5945.917432 [seconds]
Mass1: 0.63 [SolarMass]
ErrorMass1: 0.125 [SolarMass]
Mass2: 1.01 [SolarMass]
ErrorMass2: 0.15 [SolarMass]
Distance: 461.096 [pc]
ErrorDistance: 11.9846 [pc]

Signal to Noise Ratio

snr_tot = 1.6501196750484242
snr_X = 1.103906823447843
snr_Y = 1.1495175517810816
snr_Z = 1.242711626493492

Parameter estimations with A,E,T

Source 32 : SMSSJ0338

Name: SMSSJ0338 []
Amplitude: 1.209422004446953e-22 [strain]
Frequency: 0.0010892652905615163 [Hz]
FrequencyDerivative: 8.172250884122334e-19 [Hz^2]
EclipticLatitude: 1.0367520707203768 [Radian]
EclipticLongitude: 1.4047307090932146 [Radian]
Inclination: 1.2042771838760873 [Radian]
ErrorInclination: 9.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.36266545593040567 [Radian]
GalacticLongitude: 2.248989386217845 [Radian]
Period: 1836.1 [seconds]
Mass1: 0.23 [SolarMass]
ErrorMass1: 0.015 [SolarMass]
Mass2: 0.38 [SolarMass]
ErrorMass2: 0.04 [SolarMass]
Distance: 536.12 [pc]
ErrorDistance: 16.08 [pc]

Signal to Noise Ratio

snr_tot = 3.6898921693240974
snr_X = 2.3309951904146726
snr_Y = 2.928054045342151
snr_Z = 2.5329025697276464

Parameter estimations with A,E,T

Source 33 : SDSSJ0634

Name: SDSSJ0634 []
Amplitude: 1.7324113026808865e-22 [strain]
Frequency: 0.0012567550584391101 [Hz]
FrequencyDerivative: 1.4529589778751023e-18 [Hz^2]
EclipticLatitude: 0.2589911876429382 [Radian]
EclipticLongitude: 1.6943530464262384 [Radian]
Inclination: 0.6457718232379019 [Radian]
ErrorInclination: 7.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.23249705498741663 [Radian]
GalacticLongitude: 3.084558784293123 [Radian]
Period: 1591.4 [seconds]
Mass1: 0.452 [SolarMass]
ErrorMass1: 0.066 [SolarMass]
Mass2: 0.209 [SolarMass]
ErrorMass2: 0.027500000000000004 [SolarMass]
Distance: 433.261 [pc]
ErrorDistance: 16.0567 [pc]

Signal to Noise Ratio

snr_tot = 13.450323724890705
snr_X = 8.942471436155511
snr_Y = 9.568456838510851
snr_Z = 9.99189726589473

Parameter estimations with A,E,T

Source 34 : SDSSJ1337

Name: SDSSJ1337 []
Amplitude: 4.388710706847701e-22 [strain]
Frequency: 0.0003365330899526027 [Hz]
FrequencyDerivative: 1.856006058763817e-20 [Hz^2]
EclipticLatitude: 0.7953751262903275 [Radian]
EclipticLongitude: 3.1920200839679365 [Radian]
Inclination: 0.22689280275926285 [Radian]
ErrorInclination: 1.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 1.2929381645481473 [Radian]
GalacticLongitude: 1.5540900351948068 [Radian]
Period: 5942.952 [seconds]
Mass1: 0.51 [SolarMass]
ErrorMass1: 0.01 [SolarMass]
Mass2: 0.32 [SolarMass]
ErrorMass2: 0.01 [SolarMass]
Distance: 113.778 [pc]
ErrorDistance: 0.565753 [pc]

Signal to Noise Ratio

snr_tot = 4.006950327718945
snr_X = 2.7955007305167032
snr_Y = 2.8782785451346364
snr_Z = 2.8256166525143076

Parameter estimations with A,E,T

Source 35 : ZTFJ1946

Name: ZTFJ1946 []
Amplitude: 2.800387458179067e-23 [strain]
Frequency: 0.0009931367250683863 [Hz]
FrequencyDerivative: 5.661928011032228e-19 [Hz^2]
EclipticLatitude: 0.9085153475414691 [Radian]
EclipticLongitude: 5.375153820485151 [Radian]
Inclination: 1.3452997874372292 [Radian]
ErrorInclination: 1.4 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.06394362780531625 [Radian]
GalacticLongitude: 1.174875367296991 [Radian]
Period: 2013.82141 [seconds]
Mass1: 0.272 [SolarMass]
ErrorMass1: 0.0445 [SolarMass]
Mass2: 0.307 [SolarMass]
ErrorMass2: 0.091 [SolarMass]
Distance: 2116.5 [pc]
ErrorDistance: 302.9 [pc]

Signal to Noise Ratio

snr_tot = 0.7526100727242276
snr_X = 0.6164514119834337
snr_Y = 0.4172359445468564
snr_Z = 0.5436208860168004

Parameter estimations with A,E,T

Source 36 : ZTFJ0640

Name: ZTFJ0640 []
Amplitude: 4.9625317873952305e-23 [strain]
Frequency: 0.0008944479824831307 [Hz]
FrequencyDerivative: 5.457554034750038e-19 [Hz^2]
EclipticLatitude: -0.09523736320285323 [Radian]
EclipticLongitude: 1.7390342498888491 [Radian]
Inclination: 1.1397000015522971 [Radian]
ErrorInclination: 5.1 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.09721832999458814 [Radian]
GalacticLongitude: 3.4197824283944214 [Radian]
Period: 2236.016 [seconds]
Mass1: 0.39 [SolarMass]
ErrorMass1: 0.1045 [SolarMass]
Mass2: 0.325 [SolarMass]
ErrorMass2: 0.0225 [SolarMass]
Distance: 1575.9 [pc]
ErrorDistance: 621.4 [pc]

Signal to Noise Ratio

snr_tot = 1.537286523455879
snr_X = 1.0359350264313238
snr_Y = 1.0764432524726795
snr_Z = 1.1458351726581004

Parameter estimations with A,E,T

Source 37 : ZTFJ2320

Name: ZTFJ2320 []
Amplitude: 4.1249930686532385e-23 [strain]
Frequency: 0.0006033546882680517 [Hz]
FrequencyDerivative: 1.3040644376261507e-19 [Hz^2]
EclipticLatitude: 0.6648607231476503 [Radian]
EclipticLongitude: 0.1520737218409385 [Radian]
Inclination: 1.4748032179352084 [Radian]
ErrorInclination: 2.95 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.3771743780022346 [Radian]
GalacticLongitude: 1.8105225355440735 [Radian]
Period: 3314.7998 [seconds]
Mass1: 0.69 [SolarMass]
ErrorMass1: 0.03 [SolarMass]
Mass2: 0.2 [SolarMass]
ErrorMass2: 0.01 [SolarMass]
Distance: 1475.9 [pc]
ErrorDistance: 855.6 [pc]

Signal to Noise Ratio

snr_tot = 0.42028530244426554
snr_X = 0.23628531974129843
snr_Y = 0.3135207091809592
snr_Z = 0.33291416614928415

Parameter estimations with A,E,T

Source 38 : SDSSJ1043

Name: SDSSJ1043 []
Amplitude: 2.4523357105048397e-23 [strain]
Frequency: 0.0007302254936324337 [Hz]
FrequencyDerivative: 2.5954929242576506e-19 [Hz^2]
EclipticLatitude: -0.03574473257424688 [Radian]
EclipticLongitude: 2.7951549877793527 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.9235200297417756 [Radian]
GalacticLongitude: 4.225494478955832 [Radian]
Period: 2738.88 [seconds]
Mass1: 0.183 [SolarMass]
ErrorMass1: 0.01 [SolarMass]
Mass2: 0.76 [SolarMass]
ErrorMass2: 0.25 [SolarMass]
Distance: 2787.2 [pc]
ErrorDistance: 1217.7 [pc]

Signal to Noise Ratio

snr_tot = 0.5614438771835846
snr_X = 0.39284357082050225
snr_Y = 0.4175484736901779
snr_Z = 0.3796736149166196

Parameter estimations with A,E,T

Source 39 : SDSSJ0822

Name: SDSSJ0822 []
Amplitude: 6.839362289845137e-23 [strain]
Frequency: 0.0008230207123450019 [Hz]
FrequencyDerivative: 4.813758822866145e-19 [Hz^2]
EclipticLatitude: 0.19367116737223558 [Radian]
EclipticLongitude: 2.106222182711012 [Radian]
Inclination: 1.530653753999027 [Radian]
ErrorInclination: 0.2 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.5584215848340898 [Radian]
GalacticLongitude: 3.3495817952207054 [Radian]
Period: 2430.0725 [seconds]
Mass1: 0.304 [SolarMass]
ErrorMass1: 0.014 [SolarMass]
Mass2: 0.524 [SolarMass]
ErrorMass2: 0.05 [SolarMass]
Distance: 1294.6 [pc]
ErrorDistance: 1172.9 [pc]

Signal to Noise Ratio

snr_tot = 1.1292960735154631
snr_X = 0.8378918209088987
snr_Y = 0.7190395202912999
snr_Z = 0.8329851612731849

Parameter estimations with A,E,T

Source 40 : SDSSJ0106

Name: SDSSJ0106 []
Amplitude: 7.625591241373098e-23 [strain]
Frequency: 0.00085260214173658 [Hz]
FrequencyDerivative: 3.796032642280452e-19 [Hz^2]
EclipticLatitude: -0.27563548649672936 [Radian]
EclipticLongitude: 0.19991573504401022 [Radian]
Inclination: 1.1693705988362006 [Radian]
ErrorInclination: 13.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -1.2651211069298616 [Radian]
GalacticLongitude: 2.3688376552937918 [Radian]
Period: 2345.76 [seconds]
Mass1: 0.188 [SolarMass]
ErrorMass1: 0.011 [SolarMass]
Mass2: 0.57 [SolarMass]
ErrorMass2: 0.14500000000000002 [SolarMass]
Distance: 823.6 [pc]
ErrorDistance: 441.3 [pc]

Signal to Noise Ratio

snr_tot = 1.940523880309483
snr_X = 1.3128787383092002
snr_Y = 1.3368865194184987
snr_Z = 1.4620105791273619

Parameter estimations with A,E,T

Source 41 : ZTFJ1905

Name: ZTFJ1905 []
Amplitude: 9.922726928245878e-23 [strain]
Frequency: 0.0019376758010867666 [Hz]
FrequencyDerivative: 4.905500781016209e-18 [Hz^2]
EclipticLatitude: 0.9368299108774644 [Radian]
EclipticLongitude: 5.127776589762577 [Radian]
Inclination: 1.2217304763960306 [Radian]
ErrorInclination: 20.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.194522181122524 [Radian]
GalacticLongitude: 1.0968905656593804 [Radian]
Period: 1032.16441 [seconds]
Mass1: 0.8 [SolarMass]
ErrorMass1: 0.1 [SolarMass]
Mass2: 0.09 [SolarMass]
ErrorMass2: 0.035 [SolarMass]
Distance: 696.8 [pc]
ErrorDistance: 604.9 [pc]

Signal to Noise Ratio

snr_tot = 10.710367272316233
snr_X = 7.579023087782441
snr_Y = 6.5721177287763135
snr_Z = 8.451089917533462

Parameter estimations with A,E,T

Source 42 : WD0957

Name: WD0957 []
Amplitude: 2.549916258558486e-22 [strain]
Frequency: 0.0003795202663742355 [Hz]
FrequencyDerivative: 2.2252578138009597e-20 [Hz^2]
EclipticLatitude: -1.1746304769296143 [Radian]
EclipticLongitude: 3.6394196423563328 [Radian]
Inclination: 1.3089969389957472 [Radian]
ErrorInclination: 15.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.1651587617869714 [Radian]
GalacticLongitude: 5.011604736688094 [Radian]
Period: 5269.8108038 [seconds]
Mass1: 0.37 [SolarMass]
ErrorMass1: 0.02 [SolarMass]
Mass2: 0.32 [SolarMass]
ErrorMass2: 0.03 [SolarMass]
Distance: 163.7 [pc]
ErrorDistance: 0.8 [pc]

Signal to Noise Ratio

snr_tot = 1.1843199158766033
snr_X = 0.8888018702753976
snr_Y = 0.6027447869726121
snr_Z = 0.9750097056751797

Parameter estimations with A,E,T

Source 43 : J1239m2041

Name: J1239m2041 []
Amplitude: 1.5875107961244988e-22 [strain]
Frequency: 0.0014810075590625815 [Hz]
FrequencyDerivative: 4.888274646074877e-18 [Hz^2]
EclipticLatitude: -0.2628915344494228 [Radian]
EclipticLongitude: 3.445486075395212 [Radian]
Inclination: 1.239183768915974 [Radian]
ErrorInclination: 9.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: 0.734684131322249 [Radian]
GalacticLongitude: 5.22334284555229 [Radian]
Period: 1350.432 [seconds]
Mass1: 0.291 [SolarMass]
ErrorMass1: 0.013 [SolarMass]
Mass2: 0.68 [SolarMass]
ErrorMass2: 0.08499999999999999 [SolarMass]
Distance: 972.0 [pc]
ErrorDistance: 272.4 [pc]

Signal to Noise Ratio

snr_tot = 9.734454279065961
snr_X = 6.644223549621831
snr_Y = 6.630536692050091
snr_Z = 7.350177072570681

Parameter estimations with A,E,T

Source 44 : J2322p2103

Name: J2322p2103 []
Amplitude: 1.0106240192378141e-22 [strain]
Frequency: 0.0010427093760427095 [Hz]
FrequencyDerivative: 1.2668252918556597e-18 [Hz^2]
EclipticLatitude: 0.4014962681098809 [Radian]
EclipticLongitude: 0.0023183410970025833 [Radian]
Inclination: 1.0471975511965976 [Radian]
ErrorInclination: 0.0 [Radian]
Polarization: 0.0 [Radian]
InitialPhase: 0.0 [Radian]
GalacticLatitude: -0.6489902103785794 [Radian]
GalacticLongitude: 1.6845062728915792 [Radian]
Period: 1918.08 [seconds]
Mass1: 0.25 [SolarMass]
ErrorMass1: 0.021 [SolarMass]
Mass2: 0.75 [SolarMass]
ErrorMass2: 0.26 [SolarMass]
Distance: 1133.8 [pc]
ErrorDistance: 386.2 [pc]

Signal to Noise Ratio

snr_tot = 4.014527049529365
snr_X = 2.681966539256232
snr_Y = 2.9178192805286227
snr_Z = 2.9099303995875716

Parameter estimations with A,E,T

Input parameters


- log : log/SO1_detectability_vgb_1.5_yr.log
- config : config.yml
- subconfig :
- duration : 1.5 yr
- duty_cycle : 0.82
- armlength : 2500000000.0 m
- noise : SciRDv1_redbook/noise_background_1.5_yr.npy
- show : False
- fast : 0
- tdi2 : 1
- freqs : [2e-05, 1]
- force_duration : 1.5_yr
- source : SO1/data/Params_VGBind_v3.hdf5
- timestep : 5
- report : SciRDv1_redbook/report_SO1a_detectability_vgb_1.5_yr.md
- fom_title : Detectability of verification binaries and measurement of the their frequency evolution
- fom_config : SO1/detectability_vgb.1.5_yr.yml
- fom_type : number
- snr : 0
- fom_snr : 7
- fom_sky_acc : 0
- fom_mc_rel_acc : 0
- fom_frequency_derivative : 1e-06
- fom_frequency_range : None
- frequency_range : None
- source_type :
- fom_source_type : verification
- fom_range : [2, 6, 10]
- random_seed : 5896
- nproc : 40

Download

SNR data

Parameter estimation data

dPoP data

Keys	Action
`?`	Open this help
`n`	Next page
`p`	Previous page
`s`	Search
